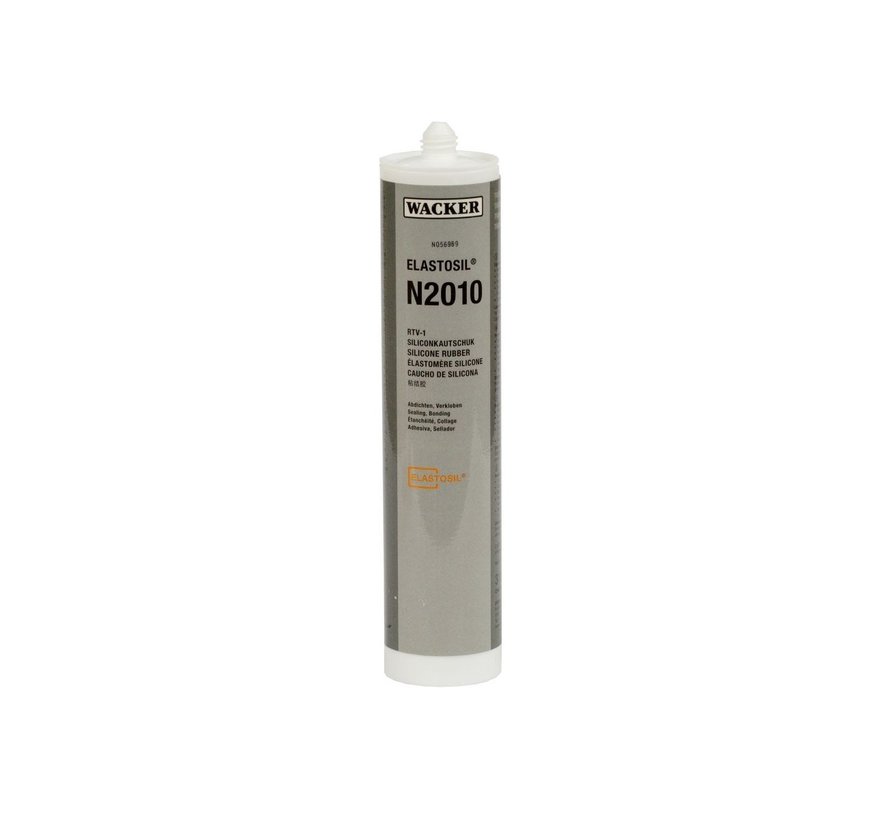

Silicone adhesive Wacker ELASTOSIL® N2010
Wacker silicone adhesive N2010
- Neutral curing silicone adhesive, suitable for electronics.
- Translucent
- Sprayable
- Adheres to many surfaces, even without pre-treatment
- Solvent-free
- Recommended exposure temperature after curing: -45 °C to +180 °C
- 1 component system
- Self-levelling/self-flattening
Applications
- For (small) household appliances.
- Automotive electronics
- Bonding and Sealing
- Electrical components
- Industrial assembly
- Measurement and control equipment and sensor technology
- Ready to use, uniform silicone sealant applications
Properties not cured
Property | Condition | Value | Method |
|---|---|---|---|
| Colour | - | Colorless | - |
| Density | 23°C | 1.01 g/cm³ | DIN EN ISO 1183-1A |
| Viscosity D = 0.5 1/s | 25 1/s | 10,000 mPas | ISO 3219 |
| Viscosity D = 25 1/s | 0.5 1/s | 15,000 mPas | ISO 3219 |
| Skin formation time [1] | 23°C | 50% rh | 20 minutes | - |
These figures are for guidance only and should not be used in making specifications.
Properties Cured
Property | Condition | Value | Method |
|---|---|---|---|
| Colour | - | colorless | - |
| Density | 23°C | 1.01 g/cm³ | DIN EN ISO 1183-1A |
| Hardness Shore A | - | 25 | DIN ISO 48-4 |
| Tensile strength [1] | - | 1 N/mm² | ISO 37 |
| Elongation at break | - | 200% | ISO 37 |
These figures are for guidance only and should not be used in making specifications.
Process
ELASTOSIL® N2010 shows good primerless adhesion to many substrates. We recommend carrying out preliminary tests to optimize conditions for the specific application.
ELASTOSIL® N2010 is a ready-to-use, acid and solvent free, non-corrosive RTV-1 (room temperature vulcanization,
1-component) silicone rubber suitable for many applications. Good adhesion to plastics and metals in combination with elasticity and durability open up a wide range of possible applications.
The consistency of the uncured material allows dipping, spraying and dispensing processing. ELASTOSIL® N2010 shows excellent resistance to weathering, aging, moisture and UV light. The vulcanized silicone rubber remains permanently elastic over a wide temperature range from -50°C to +180°C (-58 to +356°F).
If the removal of silicone rubber from machinery or dispensing equipment is required, turpentine is recommended as a solvent. However, cleaning must take place before the rubber has fully cured.
Packaging and storage
Stored unopened in a dark place between 5 and 25 °C, the product has a shelf life of at least 1 year.
Safety
Signal word: Warning
Hazard statements, H-phrases:
H226 Flammable liquid and damo
EUH208 Contains trimethoxyvinylsilane, 3-(2-Aminoethylamino)propyltriethoxysilane, 3-(triethoxysilane)propylamine. May cause an allergic reaction.
Precautions, P phrases:
P210 Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. Do not smoke.
P233 Keep container tightly closed
P243 Take precautions to prevent static electricity discharges.
