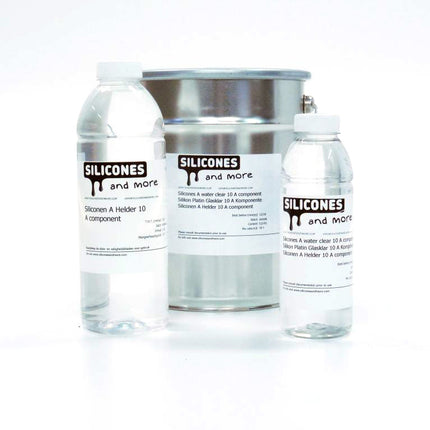

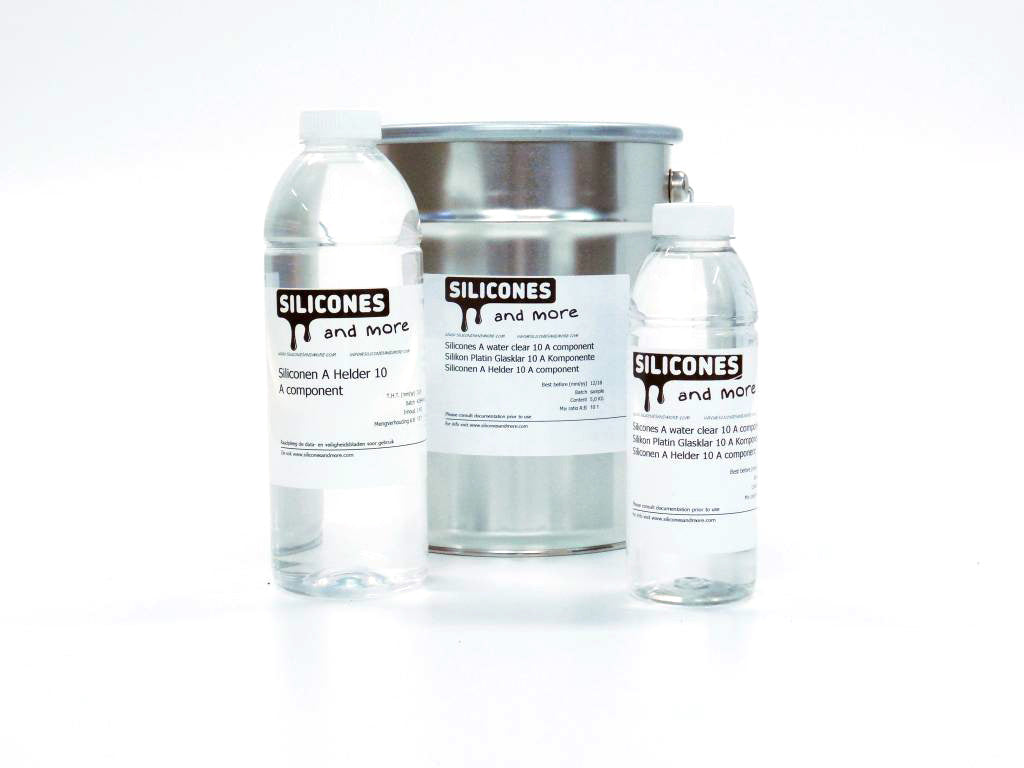

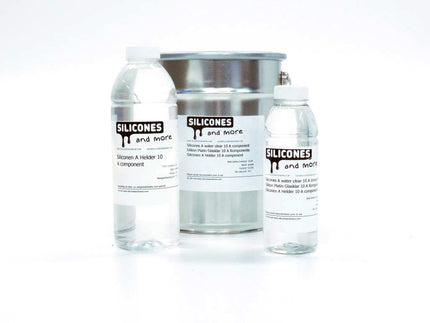

Silicone Addition Clear 35 Quick
++BLUE++ Crystal clear silicones which are suitable for flexible infusion of LEDs and optical elements. These silicones are also very well suited for the simulation of water in aquariums and windows in the modeling. ++ENDBLUE++
description
Silicone Addition Clear 35 Quick is a 2-component (platinum) Poly addition silicone molds, which cures at room temperature. Silicones are after mixing, good liquid and crystalline.
Due to the low shrinkage and excellent clarity potting electronics are ideal for this silicone, optical elements or as a mold for oermodellen without undercuts that must be excised.
Technical specifications
|
The mixing ratio (by weight)
|
|
[A: B]
|
|
1: 1
|
|
Pot life at 23 ° C
|
|
[Min]
|
|
30
|
|
Demolding @ 23 ° C
|
|
[Hours]
|
|
6
|
|
Viscosity @ 23 ° C
|
|
[CST]
|
|
4000
|
|
color
|
|
|
|
crystal
|
|
hardness
|
|
[Shore A]
|
|
35
|
|
density
|
|
[G / cm3]
|
|
1.03
|
|
pull
|
|
[Kg / cm2]
|
|
40
|
Note: Pot life and demold time are temperature-dependent to a large extent. At higher temperature processing time and shorten demold.
processing
The Silicones Glaskar, you can simply mix by hand or by machine. Mix the A- and B-component and thoroughly in the ratio indicated (100 parts A and 100 parts B) together. Process the mixture in the pot life and wait ontmallen until it is fully cured. Alternatively, you can also the curing process by accelerating the whole in an oven. Make sure that air bubbles shorter given the time to escape in this case.
Further information
From air bubbles may be best after mixing by pulling the silicone vacuum immediately prevented. To bubbles, stir the A- and B-component well, but slowly, without preventing the storage in the air. You create the best a "figure 8" motion. If you want to reduce the Shore (stiffness), then you can add silicone oil from the store. If you do not want the silicone spatula to pour, but you can Silicone Thixo A (note: Silicone Thixo C !!) book. You can also add fumed silica. You can intense colors with silicon dye silicone.
The silicon reach their final properties after tempering / after-baking for 1 hour at 80 ° C
packaging
The products are packaged in amounts of 1 kg, 2 kg 9 kg, 40 kg and 400 kg. The components can not be ordered separately.
For larger packages, we ask you to contact us through the site.
durability
Provided that the silicone, cool stored in sealed packaging, frost-free, the durability tenminste1 year.
safety
If the silicone often works during processing gloves and properly ventilate the area advised contribute. For safety information on the safety data sheet.
++DOWNLOADS++
| document type |
document name |
statement |
download |
| sheet |
DE - A data silicone crystal clear 35 Set |
product Description |
 |
++USP++
- Low shrinkage of <0.1%.
- highly liquid
- self-venting
- Suitable for grouting
- Refr. Index at 25 ° C 1.406
