Primer for Silicone Rubber
Most silicones do not bond chemically to a surface on their own. A primer is therefore used to promote adhesion. Our silicone primers use silane and siloxane chemistry to form a bonding layer on the substrate, so that silicone rubber bonds reliably to glass, metal, aluminium, ceramics, selected plastics and even wood. Choose a toluene-free primer where required and match the layer thickness to the substrate for maximum adhesion.
Layer thickness rule: on non-absorbent substrates (glass, metal, aluminium) apply the primer as thinly as possible, typically a layer of 1 to 10 µm. On absorbent substrates (wood, plywood, porous materials) the primer can be applied more generously.
When do you use a primer for silicone rubber?
- →Bonding RTV-2/LSR silicones to glass, steel, aluminium, ceramics or coated substrates
- →On wood or plywood, for example as a carrier plate for pad-printing pads
- →When embedding or encapsulating metal parts in silicone
- →When bonding new addition-cure silicone to already cured silicone (silicone on silicone)
Layer thickness & substrate
Non-absorbent (glass, metal, aluminium)
- Degrease, make dry and dust-free; lightly roughen very smooth surfaces
- Apply as thinly as possible and free of bubbles by brushing, dipping or spraying
- Allow to react as per the product data sheet and apply the silicone within the processing window
Absorbent (wood, plywood, porous)
- Apply the primer more generously so that the substrate is well saturated
- Wacker Primer AV A/B and Wacker G 795 are suitable for wood and plywood
- Observe the drying and reaction time for best adhesion
Silicone primers, product overview
| Product | Feature | Substrates / Use | Advantages |
|---|---|---|---|

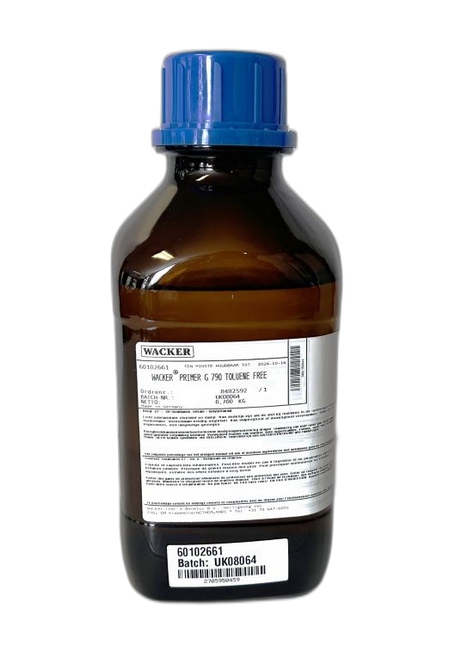

| WACKER PRIMER G 790 (toluene-free) | 1-component, reactive siloxanes and silanes in a toluene-free solvent | Addition-cure silicones (RTV-2 and LSR) on metal, aluminium, stainless steel, glass and various plastics | Toluene-free, universally applicable |

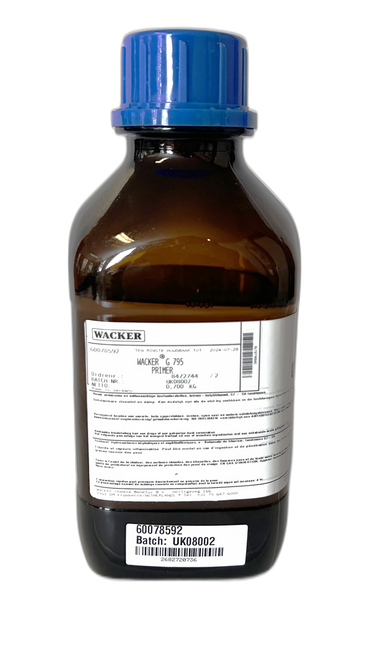

| WACKER G 795 | 1-component, reactive siloxanes and silicone resins in isoalkanes | Addition-cure silicones (RTV-2) on aluminium, metal, wood, plywood and various plastics | Also for pad-printing silicones with a high oil content |

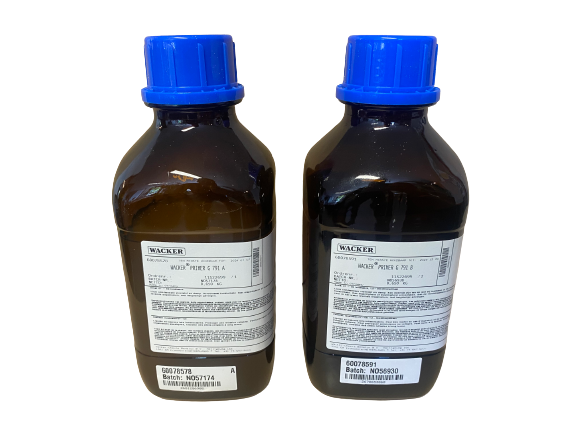

| WACKER PRIMER G 791 A/B | 2-component, addition-curing primer system | Addition-cure silicones on already cured addition-cure silicones (silicone on silicone) | Cure the primer film for 20 to 60 minutes at 100 to 120 °C |
| ELASTOSIL® AUX G 3243 | 1-component, siloxanes and reactive silanes in solvent (Isopar E / xylene) | Solid silicone rubber (HCR/HTV, peroxide-curing) on metal, ceramics, glass and plastics | Can be thinned up to 1:10; allow at least 2 hours to flash off |

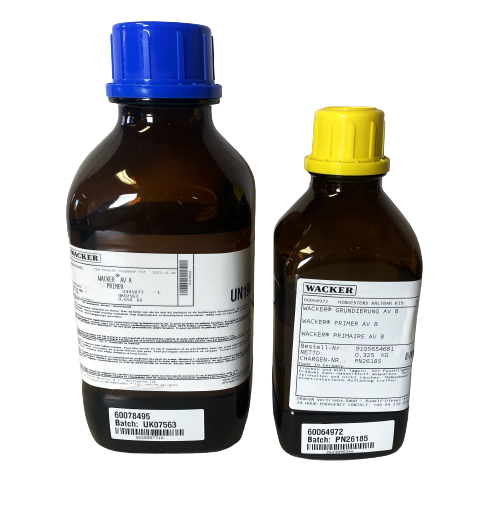

| WACKER PRIMER AV A/B (SLM 74300) | 2-component, mix ratio 2:1, low solvent content | Addition-cure silicones (RTV-2) on aluminium, metal, wood and plywood | Also for pad-printing silicones with a high silicone oil content, pot life approx. 8 hours |
Comparison table: which primer for which silicone and substrate?
See at a glance which Wacker primer suits your silicone type and substrate, followed by the key technical data. Based on practical experience and Wacker data; always carry out an adhesion test on a sample piece.
Swipe or scroll horizontally to see the full table.
| Wacker primer | Suitable for silicone type | Adhesion to substrate | Comp. | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Condensation (tin) | Addition (platinum) | Peroxide | Silicone | Metal | Wood | Various plastics | Acrylate | (Anodised) aluminium | Polyamide | Polyester | Polyurethane | Glass | Ceramic | ||
| G 790 Toluene Free | ++ | ++ | n.t. | +/- | + | + | + | + | + | + | + | + | + | + | 1 |
| G 791 A/B | + | ++ | n.t. | + | + | + | + | + | + | + | + | + | + | + | 2 |
| G 795 | + | ++ | n.t. | +/- | + | + | + | + | + | + | + | + | + | + | 1 |
| ELASTOSIL® AUX G 800 (on request) | + | ++ | n.t. | +/- | + | + | + | + | + | + | + | + | ++ | ++ | 1 |
| ELASTOSIL® AUX G 3243 | n.t. | n.t. | ++ | n.t. | ++ | n.t. | + | n.t. | n.t. | n.t. | n.t. | n.t. | ++ | ++ | 1 |
| AV A/B | + | ++ | n.t. | +/- | + | ++ | n.t. | n.t. | ++ | n.t. | n.t. | n.t. | n.t. | n.t. | 2 |
Technical data
| Wacker primer | Comp. | Mix ratio | Flash point (°C) | Viscosity | Density 23 °C (g/cm³) | Active substance | Colour | Solvent | Flash-off → apply silicone | Heat treatment | Thin with | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G 790 Toluene Free | 1 | – | 2 | 1 mm²/s | 0.76 | approx. 17 % | Clear, yellowish | Isopar E (free of toluene and aromatics) | 1–2 h at approx. 40 % RH → within approx. 5 h | Optional 100–150 °C, max. 1 h | White spirit or Isopar E (up to 1:10) | Moisture-sensitive, store tightly closed; used for surge arresters, cable accessories and insulators |
| G 791 A/B | 2 | 1:1 | −4 (A) / 3 (B) | 4000 / 85 mPa·s | 0.77 / 0.73 | approx. 20 % | A opaque to whitish, B clear yellowish | Organic solvent | After curing the primer film → within approx. 2 days | Required: primer film 20–60 min at 100–120 °C | n/a | Silicone onto cured silicone; pot life 2–3 days (approx. 1 week at 6 °C) |
| G 795 | 1 | – | 25 | ≤ 2 mPa·s | 0.79 | 18 % | Colourless to yellowish, clear | Isoalkanes | Min. 1 h at ≥ 40 % RH → within 5 h | Metal only: 10 min at 100 °C | n/a | Also for pad-printing silicones with a high oil content; maximum adhesion after 4 days |
| ELASTOSIL® AUX G 800 (on request) | 1 | – | 3 | 1 mm²/s | 0.75 | approx. 20 % | Clear, yellowish | Organic solvent | 1–2 h at approx. 40 % RH → within approx. 5 h | Optional 100–150 °C, max. 1 h | White spirit or Isopar E (1:1 to 1:10) | For addition-curing solid silicone rubber (HCR) |
| ELASTOSIL® AUX G 3243 | 1 | – | 7 | 550 mm²/s | 0.85 | 23 % | Yellow | Isopar E / xylene | Min. 2 h → within 2 days | Optional 100–150 °C, max. 1 h | White spirit or Isopar E (up to 1:10) | For peroxide-curing solid silicone rubber (HCR/HTV); moisture-sensitive, store tightly closed |
| AV A/B | 2 | 2:1 | 2 (A) | 4.9 mm²/s (A) / 100 mPa·s (B) | 0.99 / 0.96 | – | A clear yellowish, B clear colourless | Low solvent content | Min. 15 min at ≥ 40 % RH → within 24 h | Not required | n/a | Pot life approx. 8 h; mixture releases hydrogen gas, never seal the mixing vessel gas-tight |
All primers: apply by brush, dipping or spraying, as thin as possible (1–10 µm). Viscosity in mm²/s (kinematic) or mPa·s (dynamic), as stated by Wacker. Source: current Wacker technical data sheets; flash point of G 3243 and AV A/B from the safety data sheet.
Primer for pad printing and oil-rich silicones
Pad-printing silicones often contain a lot of silicone oil to make them soft. This oil can make adhesion to the carrier plate more difficult, so not every primer is suitable. For pads on aluminium or plywood carrier plates we therefore recommend a primer developed specifically for this purpose.
- ✓ Wacker Primer AV A/B: two-component primer; even silicones with a high silicone oil content achieve excellent adhesion to aluminium or plywood carrier plates. Our first choice for pad printing.
- ✓ Wacker G 795: one-component primer, also suitable for pad-printing silicones with a high oil content on aluminium or plywood. Easier to use, as no mixing is required.
Both primers are intended for addition-cure (platinum) silicones. Degrease the carrier plate thoroughly and lightly roughen very smooth surfaces for the best adhesion.
Application & processing
- Clean and degrease: remove dust, grease and release agents, for example first with white spirit and then with acetone
- Apply thinly and evenly: as thin as possible on dense substrates, more generously on absorbent substrates without letting the primer run
- Observe the reaction time: follow the product data sheet; most primers need at least 40% relative humidity
- Apply the silicone within the processing window: if exceeded, prime again
- Adhesion test: carry out a small trial before series production
Frequently asked questions about silicone primers
Do these primers also work with condensation-cure silicones?
Yes, most of them do. In our experience G 790 Toluene Free works very well with condensation-cure (tin) silicones; G 791 A/B, G 795, G 800 and Primer AV A/B work well. ELASTOSIL® AUX G 3243 is intended for peroxide-cured silicones. See the comparison table above and contact us if in doubt.
How thin is thin enough on glass or metal?
An almost invisible film, typically 1 to 10 µm. Layers that are too thick reduce adhesion and can become brittle.
When should I choose a 2-component primer?
Choose Wacker Primer AV A/B for aluminium, wood and plywood, especially for pad-printing silicones with a high silicone oil content. Wacker Primer G 791 A/B is intended only for bonding new addition-cure silicone to already cured silicone.
Is G 790 really toluene-free?
Yes, G 790 Toluene Free is free of toluene and other aromatic solvents. Always check the current product data sheet and safety data sheet.
Advice & ordering
Unsure whether to choose G 790 (toluene-free), G 795, G 791 A/B, ELASTOSIL® AUX G 3243 or Primer AV A/B? We will quickly help you choose the right primer, layer thickness and processing method.
