Ceramic shell materials for the lost wax method

What is the Ceramic Shell Method? The ceramic shell method is a lost-wax method (other combustible materials can also be used). In this method, a wax model is made, around which a hard, heat-resistant shell is formed. The wax is then fired away, and the model is lost (hence the...

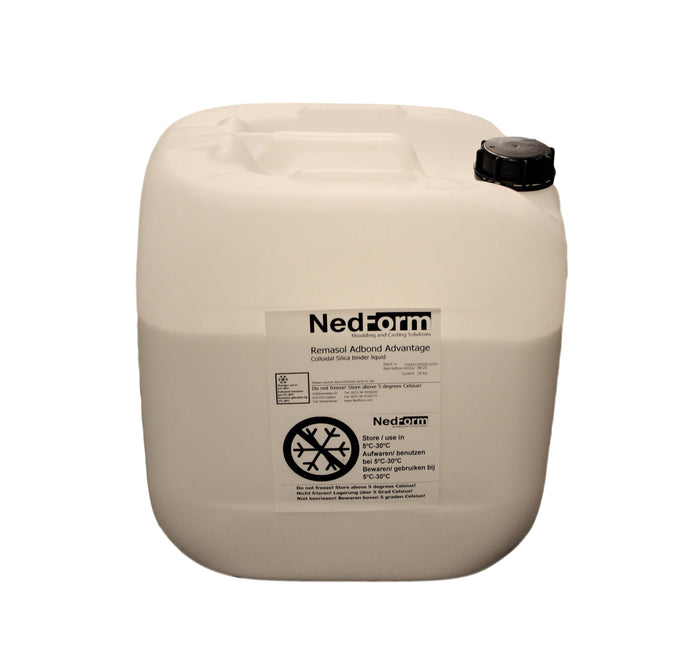

  • Remet Adbond Advantage

    RemetAdbond Advantage

    In stock

    €32,81€27,12

    Water-based binder for the production of a slurry for the ceramic shell. Remasol Adbond Advantage has an increased adhesion to wax surfaces making it an ideal primary binder. A ready to use solution, optimised for the best performance. Excellent adhesion...

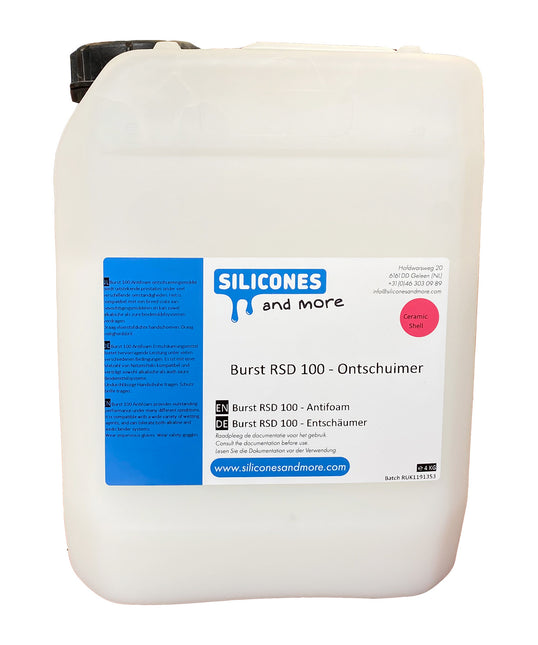

  • Remet Burst RSD 100

    RemetBurst RSD 100

    In stock

    €19,95€16,49

    The expanded use of latex binder systems, more powerful wetting agents and faster turnaround times has brought more attention to the use of antifoams to alleviate and control slurry foaming tendencies. While there are many silicone antifoams on the market,...

  • Imerys Clayrac Aluminosilicaat stukko en meel

    ImerysClayrac Aluminosilicate Pieces and Flour

    In stock

    €42,31€34,97

    Increased heat resistance Robust and resilient Easy knockout Increased strength compared to Fused Silica systems Clayrac is a versatile clay material specifically designed for the production of highly refractory and creep resistant ceramic moulds, making it ideal for the ceramic...

  • Last stock! Nedform Droogindicator keramische schaal

    NedformDry indicator for the ceramic shell

    Next day delivery

    €42,35€35,00

    Acid Yellow is a dye that is often used as a drying indicator in the ceramic shell method. This dye changes color as the slurry dries, helping to monitor the drying process and determine when the next layer can be...

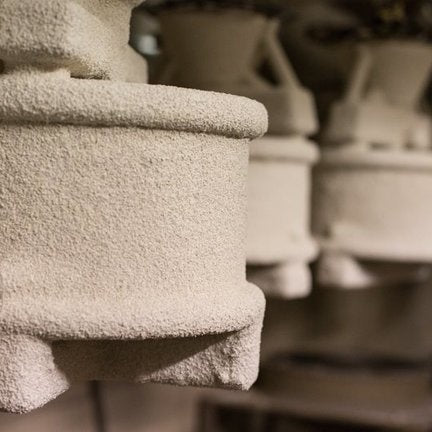

  • Remet Fused Silica LHT Meel en zand

    RemetFused Silika LHT Flour & Sand

    2 - 3 days

    €107,65€88,97

    Low Thermal Expansion. Excellent Thermal Shock Resistance. Light Weight. Easy Knockout. Very pure Material for Long Slurry Life. High Permeability. Good Insulator - Low Thermal Conductivity. Fused Silica can be used for bronze, aluminium and steel. Sizes: Flour in 200...

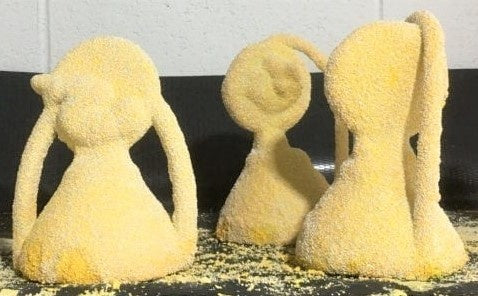

  • Pre-order Remet Jus-Dip ™ Kant en klare slurry Remet Jus-Dip ™ Kant en klare slurry

    RemetJus-Dip ™ ready-to-use slurry

    Not in stock, please contact us.

    €0,00€0,00

    Packed in a resealable plastic barrel. No slurry tank required – Just dip directly into the container No stirring required – Only stir before the first use of the day Minimal waste – When not in use, re-seal the container...

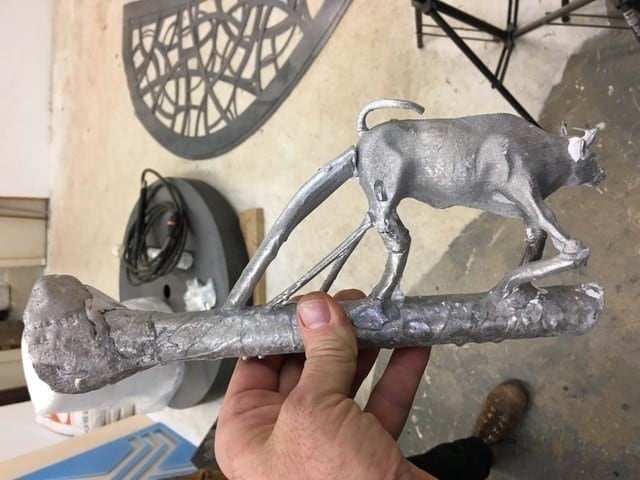

  • Remet Jus-Dip™ Starterkit, Kant en klare slurry en bezandings kit Remet Jus-Dip™ Starterkit, Kant en klare slurry en bezandings kit

    RemetJus-Dip™ Starterkit, Ready to use slurry and stucco kit

    2 - 3 days

    €0,00€0,00

    Ready-to-use slurry packed in a resealable 45 kg/25 liter plastic barrel, together with 3 bags of Remasil 50 Aluminosilicate,  for an affordable price. Remet Jus-Dip™ Ready to use instantly! Remove the lid and stir. Your slurry is now ready for...

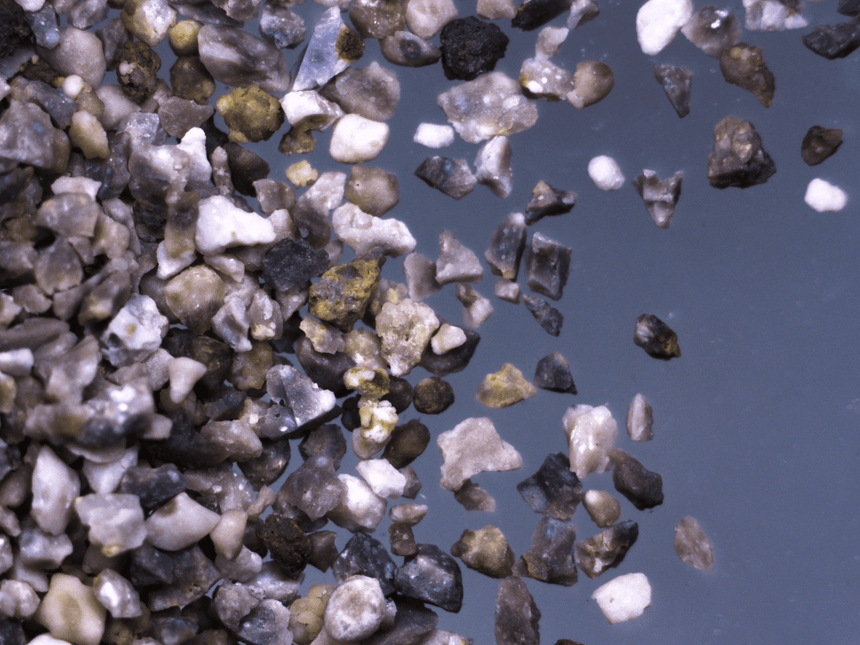

  • Remet Remasil 50 Aluminosilicaat stukko en meel

    RemetRemasil 50 Aluminosilicate Refractory Flour & Sand

    In stock

    €85,00€70,25

    Increased hot strength Robust and resilient Easy knockout Increased strength when compared to Fused Silica systems In the case of stucco grains, the custom grinding of REMASIL results in a more uniform product which has a narrow range of particle...

  • Shellspen Shellspen, Suspensiepoeder

    ShellspenShellspen, Suspension powder

    Next day delivery

    €110,11€91,00

    Shellspen suspension powder is a special powder used as a suspension agent in ceramic slurries. It helps to keep the solid particles in the slurry evenly distributed, eliminating the need for continuous stirring. This makes the process of making ceramic...

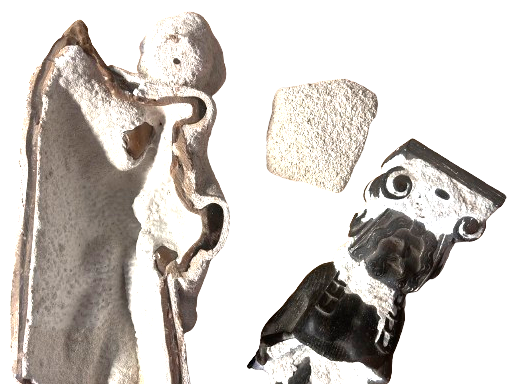

  • Nedform Starterkit DIY Easy slurry en bezanding

    NedformStarter kit DIY Easy slurry and sanding

    2 - 3 days

    €0,00€0,00

    DIY Easy Slurry This set contains all the ingredients to make 30 liters of slurry for the ceramic bowl method yourself. This slurry does not need to be stirred continuously, but only once a week or every 2 weeks and...

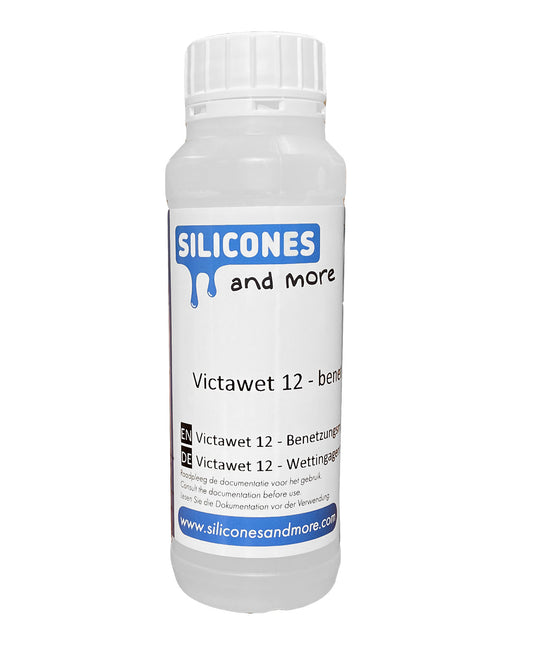

  • Remet Victawet 12

    RemetVicta Act 12

    In stock

    €24,95€20,62

    VICTAWET 12 is a non-ionic, low-foaming, organic phosphate ester, wetting agent that is effective in both acidic and alkaline binders used in the investment casting process. Victawet 12 facilitates the adhesion of the ceramic shell slurry to a wax surface....

  • Nedform Zirkoon Meel en Zand gecalcineerd

    NedformZircon Flour and Sand calcined

    2 - 3 days

    €138,19€114,21

    Discover the Power of Zircon Sand and Flour for the Ceramic Bowl Method! Are you looking for high-quality materials for your ceramic projects? Look no further! Our zircon sand and flour offer the perfect solution for the ceramic shell method,...

What is the Ceramic Shell Method?

The ceramic shell method is a lost-wax method (other combustible materials can also be used). In this method, a wax model is made, around which a hard, heat-resistant shell is formed. The wax is then fired away, and the model is lost (hence the name). The remaining hard shell is suitable for casting aluminum, including bronze.

Benefits of the Ceramic Shell Method

The ceramic shell method is a proven technique used in precision foundries for many years. It is also increasingly used in art foundries and is now often used alongside the fireclay method.

  • Fast firing - The resulting shell can be fired in 2 hours, which saves a lot of energy compared to the plaster/chamotte method.
  • Lighter weight - The shell is a lot lighter than a plaster or fireclay mould, which is also more pleasant to work with for many people
  • Simple process - Fairly easy for occasional use

The Ceramic Shell Process

The method involves a slurry made from a binding liquid, flour, and a sanding material. Through a repeated process of dipping in the slurry and applying sand, a multi-layered dish is built up over a period of several hours to days. The number of layers varies on average between 6 and 12. This process usually takes between 3 and 6 days.

The ceramic Shell method is fairly simple for occasional use, but if you want to use it continuously, it's helpful to establish a clear process. We're happy to guide you through this process.

3 Options for the Ceramic Shell

Option 1: Traditional Method

The original option and the most commonly used in larger foundries. This involves mixing a binder (a water-based silica and polymer suspension) with flour to create a slurry. Drying indicator, a crosslinking agent, and a defoamer may also be added. Note that our binder already contains crosslinking agent, defoamer, and polymer, so you usually do NOT need to purchase these separately.

Advantage: The products can be kept unmixed for many years.
Disadvantage: The slurry must be continuously mixed after mixing. If the slurry sits for too long, it will gel and thicken, becoming unusable. Therefore, a mixing machine that runs 24/7, year-round, is required. This is often a problem for smaller users. Optionally, you can also mix a smaller quantity and use it all at once, perhaps by pouring the slurry over the model instead of dipping it.

Option 2: Ready-to-use Slurry

A very convenient second option is to use a ready-made slurry. The manufacturer will have already made a slurry for you from binder and flour. Even better, this slurry doesn't require constant stirring. It's for use only once a week. This slurry naturally contains all the components: binder, flour, wetting agent, defoamer, a suspension agent, and a drying indicator.

Due to the amount of work required to mix small packages in our warehouse every week, we only offer large packages here.

Disadvantage: You have no control over the type of flour used. Of course, you can adjust the fluidity and other factors by adding binder or flour yourself. Another disadvantage is that the shelf life is usually a maximum of one year.

We recommend that you also read the manual in option 1 to learn how to further maintain and adjust a slurry.

Option 3: Hybrid Method

The newest option we offer combines the two previous options. We provide all the materials to make your own slurry, as in option 1. However, with this process, you also add a third component (Shellspen suspension powder). This eliminates the need for continuous stirring!

This way you have all the benefits of option 1: maximum control over the slurry and maximum shelf life of the unmixed components, and the advantage of option 2 of no longer having to mix continuously!

We recommend that you also read the manual in option 1 to learn how to further maintain and adjust a slurry.

Manuals and Documentation

On this page, we offer all the products listed, as well as ready-made combinations, so you can see what's possible. Of course, it's best to contact us if you'd like to place a different combination or larger order.

Explanation of the three different options

Option 1: PDF Download Manual Ceramic Shell method V3.pdf

Option 2: PDF Download EN - Product information JusDip!.pdf

Option 3: PDF Download Instructions for use Shellspen with Adbond.pdf

Recommended Tools

We recommend that you read the above manuals carefully so that you have an idea of ​​what is involved in the ceramic Shell process.

We also strongly recommend keeping a log of the slurry quality and what you've done to adjust it (or to prepare it the first time). An example can be found here:

Excel Download Slurry diary.xlsx

It's also recommended to keep a notebook for each image, so you can record your experience and use it in the future. An example can be found here:

Excel Download Notebook Image.xlsx



Here is an interesting YouTube channel by Eric W Stephenson, who clearly explains the different steps of the lost wax process with the ceramic Shell .
