Ultra Cast XT is an epoxy resin which once cured gives a very clear results with a heat resistance up to 90°C.
Ultra Cast XT is an epoxy resin that cures at room temperature and gives a very transparent end result. The Ultra XT Cast Epoxy has a high chemical and temperature resistance and can even be exposed to temperatures up to 90°C. The epoxy is solvent free making processing less dangerous. The Ultra Cast XT can be used for coating for example, table tops, bar tops, counters or kitchen blades but can also be used for casting of coasters, resin-art or a coin floor.
High temperature resistance up to 95°C*
Crystal clear
Suitable for Coating kitchen tops and tables
Suitable for casting coasters up to 5 mm thick
UV stable
High gloss
Long pot life
High chemical resistance
Good viscosity what makes casting and coating easy
Solvent free
Odorless after treatment
Excellent adhesion on all types of materials
Suitable for incidental food contact with dry food
* Please note that this epoxy needs 2 to 3 weeks of curing at room temperature to reach final temperature resistance.
Technical data
Mixing ratio in weight: A:B = 100:50 Processing time at 20°C: 90 minutes De-mold time at 20°C: 24 hours Time to fully cure: 14~21 days Color: Clear
* The above values are at a mixture with a total volume of 250 grams. At larger volumes and/or at an ambient temperature higher than 20°C the process time is shortened.
Processing
Add the component A and B in the right proportion (weight: A:B = 100:50) and mix this well. You may want to include an epoxy dye and mix again until an even color. The epoxy is now ready to be cast. Apply the epoxy with a brush or roller to provide the total surface of a thin layer. If necessary apply a second layer. This can best be done if the first layer has not been fully cured yet. Reinforcement of certain parts can be made by using fiberglass cloth. The final properties of Ultra Cast XT are achieved after the epoxy is fully cured (24 hours). Final properties like temperature resistance are obtained after 2 to 3 weeks at room temperature.
Casting a 0,5 mm layer takes 0,5 Liter per 1m2
Brushing a 3 micrometer layer takes 0,25 Liter er 1m2
Important
The best results are achieved if you handle the mixing ratio accurately . Process the product in a room where the temperature is between 18 and 30°C. Because the Ultra XT Cast has a long processing time this epoxy is prone to high humidity. Also ventilation of air (wind) and air conditioning can affect the curing of the epoxy. If you add "too much" dye or alcohol you may also experience problems with the curing.
Adding too much filler or dye may lower heat resistance. In that case we advice adding an extra unfilled layer.
The addition of alcohol pigments must be done carefully as this can cloud the surface, cause dents, etc. Also the flame resistance is destroyed or at least deteriorated by the addition of alcohol pigments.
Packing

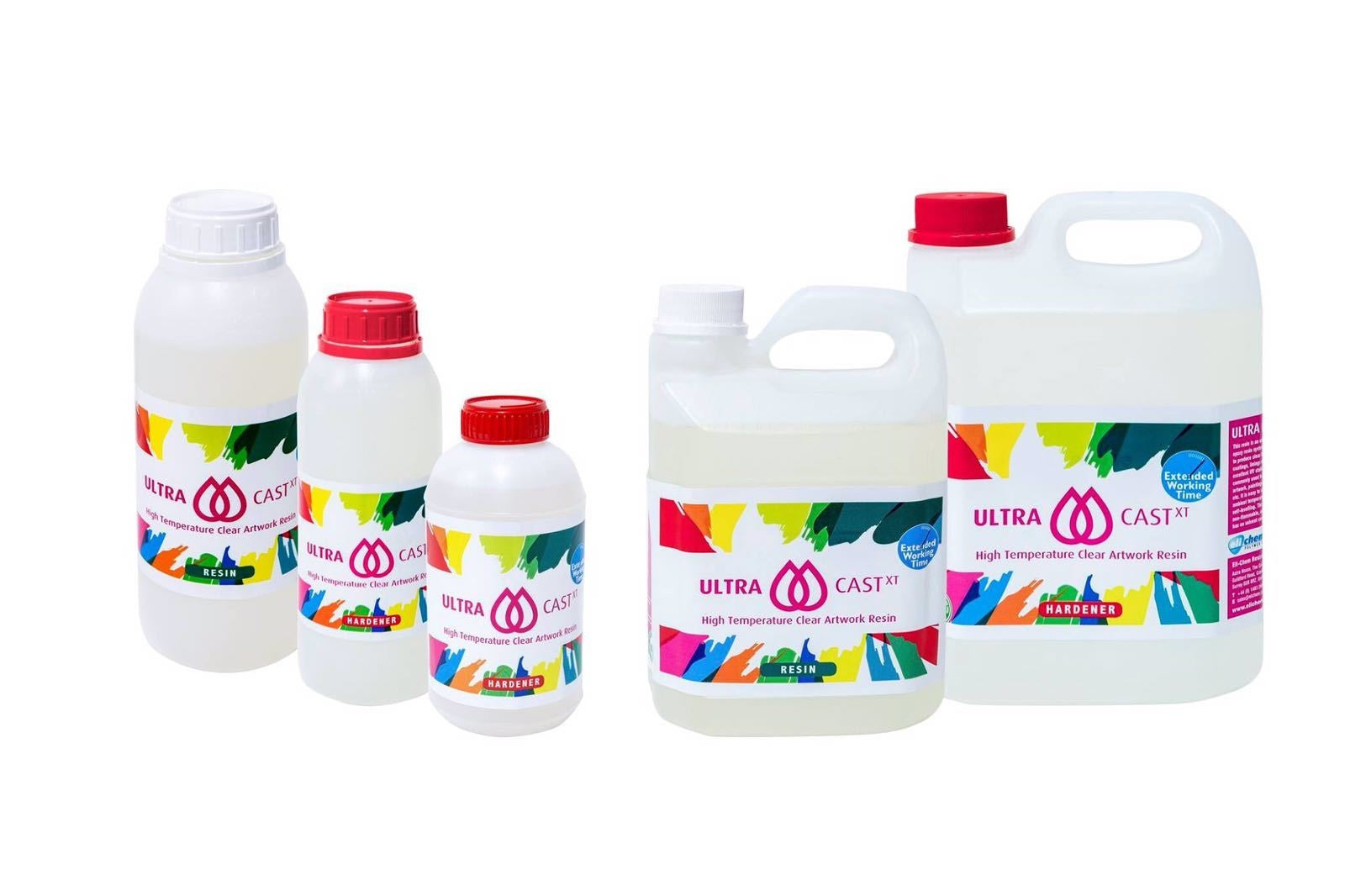

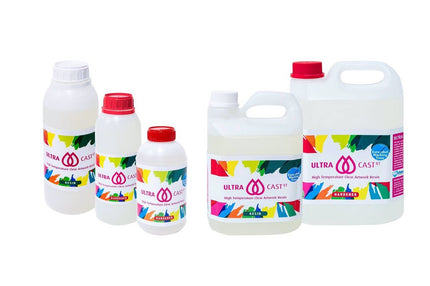

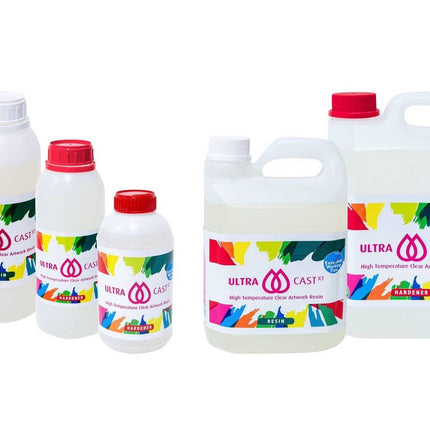

Ultra Cast XT comes in a set of: 750 grams, 1.5 kilo, 7.5 kilo and 15 kilo.
Shelf life
This epoxy is best stored in a dry place between 18° c and 28 °C. Opened packaging must be carefully closed to preserve the shelf life. If properly closed the epoxy has a shelf life around 2 years.
If the product has become too cold during transport or storage (below 15°C), the components may become cloudy. This can be solved by heating the package tightly closed in a bain marie to 60 °C and keeping it there for a few hours, shaking occasionally
Waste
The cured product can be thrown away in the trash. Dispose of uncured components and packaging with residues at an environmental point or treat according to the laws of your country.
Safety
H-Code Hazard Statements
H315 - Causes skin irritation.
H317 - May cause an allergic skin reaction.
H319 - Causes serious eye irritation.
H411 - Toxic to aquatic life with long lasting effects.
