3D Printing to Mold - Everything You Need to Know!

From 3D print to silicone mould: the complete guide

Making silicone moulds from a 3D print opens up a world of possibilities for production and prototyping. In this comprehensive guide you will learn everything about the process, from 3D printing to creating high-quality silicone moulds.

Why use a 3D print for mould making?

3D printing has revolutionised the way we make moulds. Instead of having to make a master by hand, you can now:

• Easily produce complex shapes and geometries
• Iterate quickly and make changes to your design
• Guarantee precision and repeatability
• Save costs on prototyping and small series

The process step by step

Step 1: Design your 3D model

Start by designing your master in CAD software. Take the following into account:

• Vent holes for air bubbles
• Sufficient wall thickness for strength
• Draft angles where needed
• Extra material for post-processing

Step 2: 3D print the master

Print your design with the right settings. Important factors for mould making are:

• Layer height: the finer, the smoother the end result
• Infill percentage: strong enough for the casting process
• Material choice: PLA, ABS or PETG work well

Step 3: Post-process the 3D print

This is a crucial step for a professional result:

• Sand away the layer lines (start coarse, finish fine)
• Apply primer for a smooth surface
• Optionally varnish or coat for extra smoothness
• Check for imperfections and repair them

Step 4: Prepare for casting

Before you pour the silicone:

• Clean the master thoroughly
• Apply a release agent (so the mould releases easily)
• Build a mould box or frame around your master
• Make sure the surface is level

Step 5: Pour the silicone

Now comes the exciting part:

• Mix the silicone according to the manufacturer's instructions
• De-air the silicone in a vacuum chamber (if possible)
• Pour slowly and from a single point to prevent air bubbles
• Allow to cure fully for the recommended time

Step 6: Demould and finish

After curing:

• Carefully remove the mould box
• Take the master out of the mould
• Trim any pouring channels or vent holes
• Test the mould with a trial cast

Tips for the best result

Choosing your silicone

Choose the right hardness (Shore A) for your application:

• Shore A 10-20: very soft, flexible
• Shore A 20-40: medium flexible, most commonly used
• Shore A 40-60: firmer, for detailed shapes

Common problems and solutions

Air bubbles in the mould: Use a vacuum chamber or pour in thin layers

Mould does not release: Use enough release agent and allow to cure fully

Details not sharp: Improve the post-processing of your 3D print

Mould tears: Choose a more flexible silicone or adapt your design

Applications

With this technique you can make moulds for:

• Casting resin products (epoxy, polyurethane)
• Soap and candles
• Chocolate and fondant
• Concrete and plaster
• Small series production

Advantages of this method

• Fast prototyping and iteration
• Complex shapes that would otherwise be impossible
• Cost-effective for small to medium-sized series
• Repeatable, consistent results
• Accessible to makers and small businesses

Conclusion

Combining 3D printing with silicone mould making offers unprecedented possibilities for makers, designers and small producers. With the right preparation and technique, you can achieve professional results and bring your ideas to life.

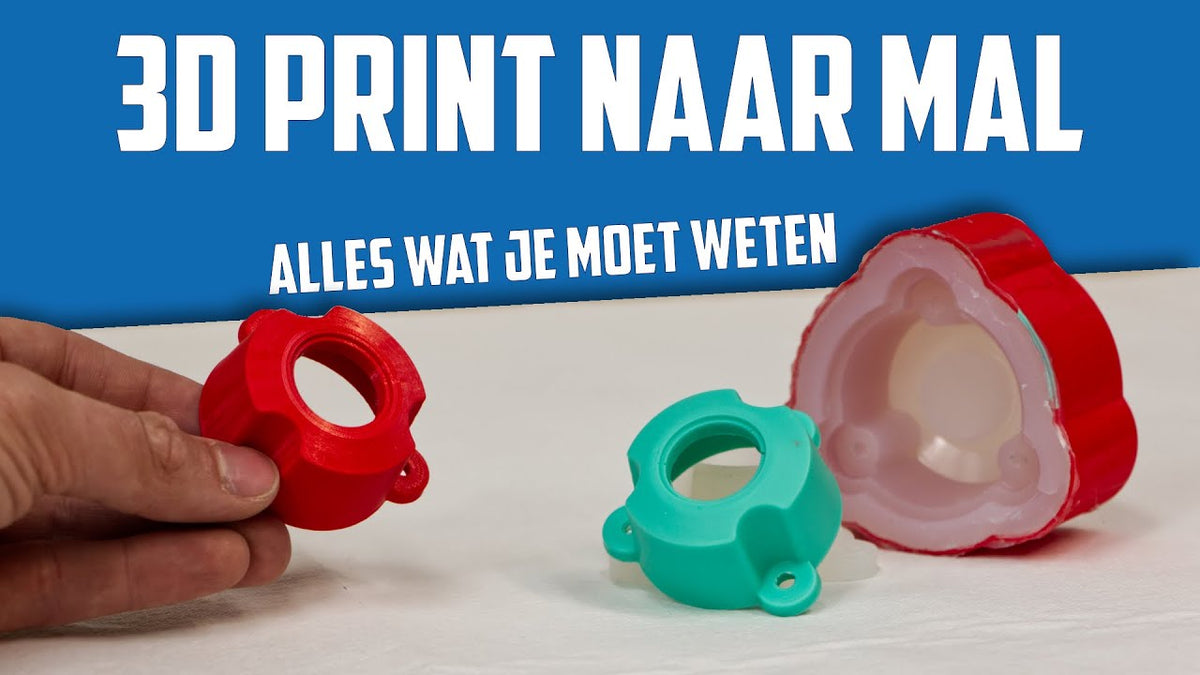

Watch the full video tutorial:

https://www.youtube.com/watch?v=9cTNSWBfLuQ
