Epoxy Support Shell Carbon Set – Lightweight Kneadable Carbon Fibre Epoxy for Support Shells around Silicone Moulds
Epoxy Support Shell Carbon Set – Lightweight Kneadable Carbon Fibre Epoxy for Support Shells around Silicone Moulds
Temporarily sold out
Leave your email address and we will let you know as soon as this variant is back in stock.
Variant: 1.2 Kg Set
You will only receive a message about this product, no newsletter.
- 30-day returns
- Over 100,000 happy customers
- Pay later with Klarna
- Personal advice from material experts
Question about this product? Our material experts are happy to help you choose the right product. Contact us
Kneadable carbon fibre epoxy for a rigid support shell around your silicone mould

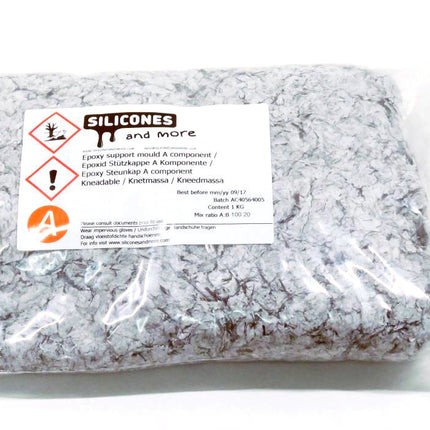

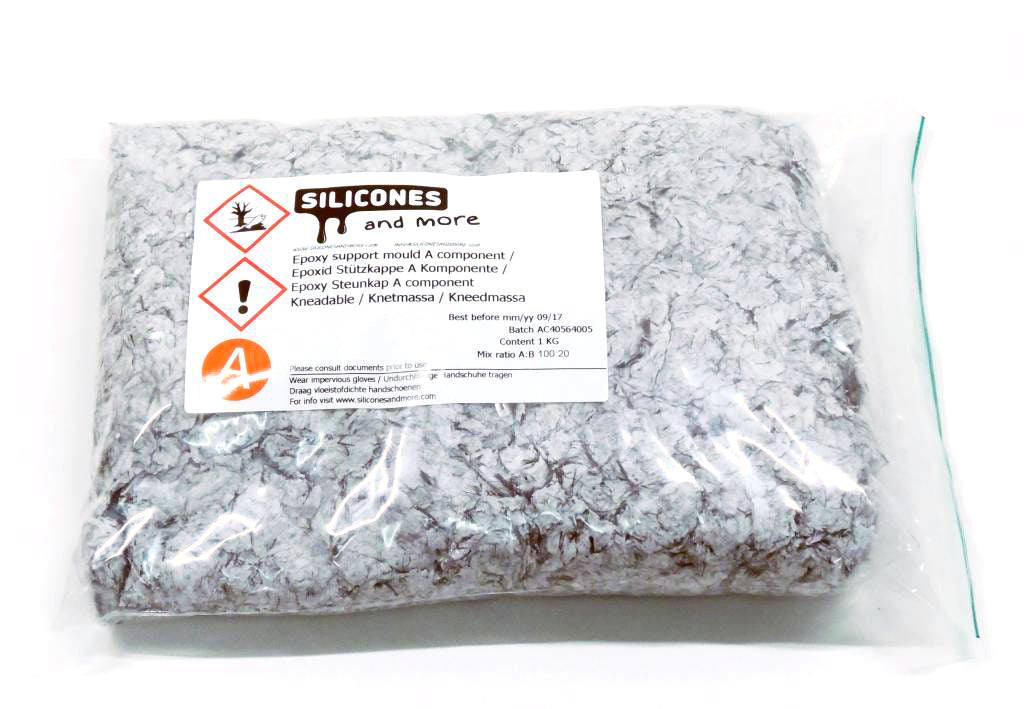

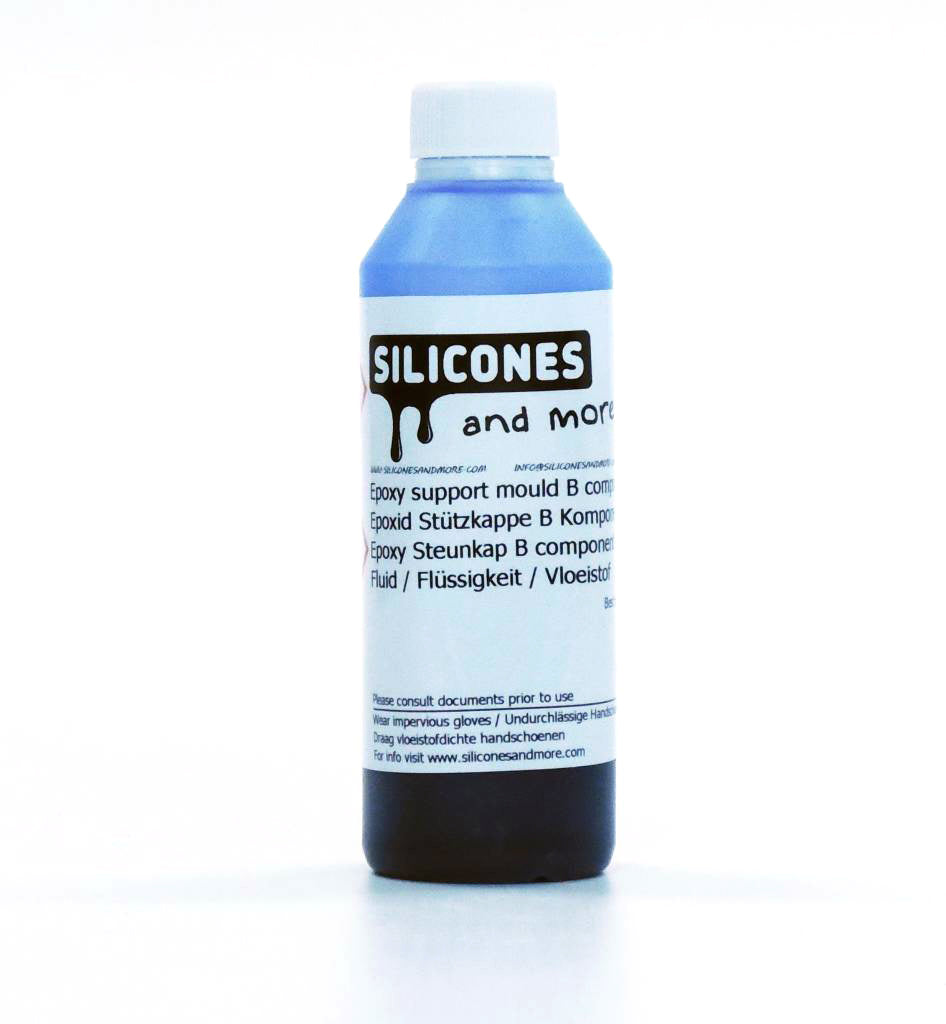

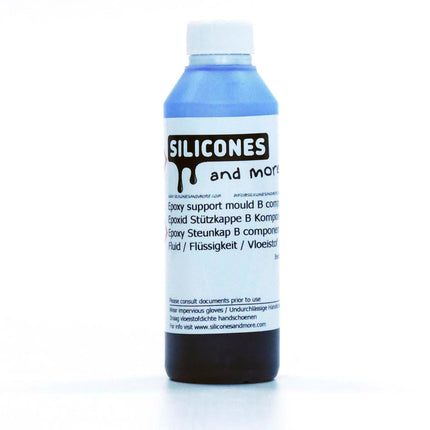

The Epoxy Support Shell Carbon Set is a two-component epoxy with carbon fibre that you use to make a rigid support shell (mother mould) around a silicone mould. Component A is a fibre-rich kneadable paste, component B a blue liquid. After kneading, you roll the mass out into a sheet and press it over the cured silicone mould. The support shell holds the flexible mould in shape during casting, so you can work with a thin layer of silicone. You have 25 to 30 minutes of working time and the epoxy is cured after 10 to 12 hours. Once cured, the support shell is particularly light, with a density of 0.50 to 0.55 g/cm³.
Key benefits
- Kneadable: you shape the mass over the mould by hand.
- Lightweight: cured density 0.50 to 0.55 g/cm³.
- Carbon fibre reinforced: a rigid shell that keeps the silicone mould in shape.
- Saves silicone: a thin silicone mould with a support shell instead of a solid block mould.
- Simple mix ratio: 5:1.
Typical applications
- ✓ Support shells around brush-on silicone moulds
- ✓ Moulds of ornaments, decorative concrete and sculptures
- ✓ Feet on larger moulds, kneaded from fresh epoxy and attached to the shell
Processing
- Weigh component A onto a piece of film and add component B in the correct ratio (5:1).
- Wearing gloves, knead thoroughly until you have an even mass without streaks.
- Place the mass between two layers of film, put a batten on each side and roll the mass out with a rolling pin into a sheet of even thickness.
- Remove the top film, drape the sheet over the cured silicone mould with the film side facing out and press it down everywhere, with no air between silicone and epoxy. Then remove the outer film as well.
- Let the sheets overlap by about 1 cm and massage the seams together well.
- Let the epoxy cure, then carefully remove the support shell from the silicone mould.
Points to note
- ✓ Do not mix more epoxy than you can use within the working time of 25 to 30 minutes.
- ✓ Always wear gloves. Cured epoxy is difficult to remove from skin and work surfaces.
- ✓ Once cured, the support shell withstands temperatures up to approximately 50 °C.
- ✓ Store the support shell with the silicone mould so that the mould always keeps its correct shape.
Professional support
Not sure how best to build up the support shell for your mould? Email us at info@siliconesandmore.com and we will be happy to help.
| Type | kneadable two-component epoxy with carbon fibre |
|---|---|
| Colour A comp. | grey/white |
| Colour B comp. | blue |
| Viscosity | kneadable paste |
| Mix ratio A/B | 5:1 |
| Density cured | 0.50-0.55 g/cm3 |
| Working time | 25-30 minutes |
| Curing time | 10-12 hours |
| Temperature resistance cured | up to 50 °C |
| Packaging | 1.2 kg set |
Safety Information
As with all chemical raw materials, work carefully: wear nitrile gloves and eye protection, avoid contact with skin and eyes and ensure good ventilation. Always consult the supplied safety data sheet (SDS) for full information on hazards, handling, storage and first aid.| Safety Pictograms | Safety Data Sheets (SDS) |
|---|---|
Required protection (ISO 7010)
  |
