Premium Crystal-Clear Casting Silicone for Professional Potting and Mould-Making Applications

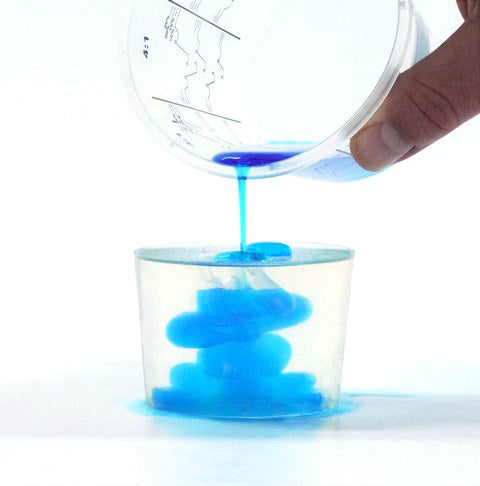

Silicone Addition Clear 5 is a pourable, addition-curing (platinum) two-component silicone that cures at room temperature to a crystal-clear, very soft rubber with a hardness of Shore A 4 to 6. Once mixed, the material flows well (4,000 cSt at 20 °C) and is self-degassing, while linear shrinkage stays below 0.1%. With a pot life of 30 minutes and a demoulding time of just 2 hours at 20 °C, you are quickly ready for the next step. The mix ratio is 1:1 by weight (100 parts A to 100 parts B); only combine components with the same lot number. Clear 5 is ideal for potting electronics and optical elements and for transparent moulds in which the model needs to remain visible.
Key Benefits
- Hardness Shore A 4 to 6: very soft and flexible – encapsulates components without mechanical stress.
- Linear shrinkage < 0.1%: virtually shrink-free – dimensionally accurate potting and precise moulds.
- Crystal clear after curing: the potted part or model remains clearly visible – over time the material may yellow, but its transparency is retained.
- Viscosity 4,000 cSt: free-flowing and self-degassing – little trapped air around components and in fine details.
- Pot life 30 minutes at 20 °C: enough time to mix, degas and pour.
- Demouldable after 2 hours at 20 °C: fast cure at room temperature – can be accelerated further in an oven.
Typical Applications
- Potting of electronics and printed circuit boards
- Embedding and protecting optical elements
- Transparent moulds for master models without undercuts, which are cut open after curing
- Moulds in which the model must remain visible during making and demoulding
- Transparent parts in model making and set building
Processing instructions:
- Stir component A and component B separately and thoroughly before use.
- Weigh A and B accurately in a 1:1 ratio by weight (100 parts A to 100 parts B). Only use components with the same lot number – mixing different lots can lead to curing problems.
- Mix by hand or by machine, slowly and thoroughly in a figure-of-eight motion without folding in air, until completely homogeneous.
- Preferably degas the mixture in a vacuum chamber immediately after mixing to prevent trapped air.
- Pour the mixture slowly from a single point within the pot life of 30 minutes (20 °C).
- Only demould once fully cured, after approximately 2 hours at 20 °C. Curing in an oven speeds up the process, but air bubbles then have less time to escape. Pot life and demoulding time depend strongly on temperature: the warmer, the shorter both become.
Modifying, Colouring and Shelf Life
- Adding silicone oil makes the mixture more fluid, so air bubbles escape more easily, and lowers the hardness. Silicone oil does not cross-link and may migrate to the surface over time.
- To spread rather than pour, add Silicone Addition Thixo A or fumed silica. Do not use Thixo C, which is intended for condensation silicones.
- Colour with silicone pigment.
- At higher temperatures the material may develop a very faint yellowish haze; for most potting applications this is not a problem.
- The components are supplied as a set only and cannot be ordered separately. Larger pack sizes than those in the webshop are available on request.
- Stored in closed packaging in a cool, frost-free place, the product has a shelf life of at least 1 year.
Silicones and More, specialist in high-quality mould-making rubbers and casting materials for professional makers.
Important Warning: Inhibition of Addition Silicones
Please note: This is an addition silicone (platinum cure). Curing can be inhibited by sulphur, nitrogen, amine compounds and metal salts. If you are unsure whether the materials you use (gloves, spatulas, cups, models) contain these substances, carry out a small test first. Inhibiting substances are found in, among other things, latex gloves, some plasticines, paints and adhesives, condensation silicones, one-component silicone sealant, natural rubber and 3D printing materials (especially stereolithography). If in doubt, apply a separating layer of polyvinyl alcohol (PVA).
Professional Support
Silicone Addition Clear 5 combines a very soft hardness with a short demoulding time. For an even softer gel, choose Silicone Addition Clear 0; for a firmer, glass-clear rubber with a long pot life, choose Silicone Addition Clear 25. If you are unsure which suits you best, contact us at info@siliconesandmore.com; we are happy to advise you.
Product Properties
- Hardness5Shore AHardness of the silicone material
- Shrinkage0.1%Linear shrinkage after curing
- ColorTransparentColor of the finished product
- TransparencyTransparentDegree of transparency
- Viscosity4000mPa·sViscosity of the uncured silicone
- Mix ratio1:1Mixing ratio A : B
- Pot life30minutesWorking time after mixing
- Cure time120minutesTime until full cure
Physical Properties
- Flash point150°CMin. temperature at which the product ignites
Component Properties
- Color AClearColor of component A
- Color BClearColor of component B
- Density A1.01g/cm³Density of component A
- Density B1.01g/cm³Density of component B
Application
- Use casePotting of electronics and optical elements, transparent cut moulds without undercutsIntended use
- Silicone type["Addition cure","RTV-2"]Type of silicone or polymer
- Cure speedNormalHow quickly the material can be demoulded
- Cure conditionRoom temperature or heatCondition under which the material cures
- Shelf life12monthsIn unopened original packaging
Safety Information
Both components are not classified as hazardous under Regulation (EC) No 1272/2008 (CLP): no hazard pictograms, no signal word and no H statements apply. Component B contains Si-H groups and, on contact with acids or bases, can form hydrogen gas, which is extremely flammable. When heated above 150 °C, traces of formaldehyde may be released; ensure good ventilation. Component B is very slightly toxic to aquatic life: do not discharge onto the ground, into surface water or into the sewer. Recommended personal protective equipment: safety glasses with side shields, protective gloves to EN 374 (nitrile, not latex, as latex inhibits curing) and suitable work clothing. Respiratory protection is not required under normal use. Ensure good ventilation of the work area and wash your hands after work. For full information on storage, disposal and emergency measures, consult the safety data sheets (SDS) for component A and component B. These are available for download on this page.| Safety Pictograms | Safety Data Sheets (SDS) |
|---|---|
Required protection (ISO 7010)
|
Technical data sheets
