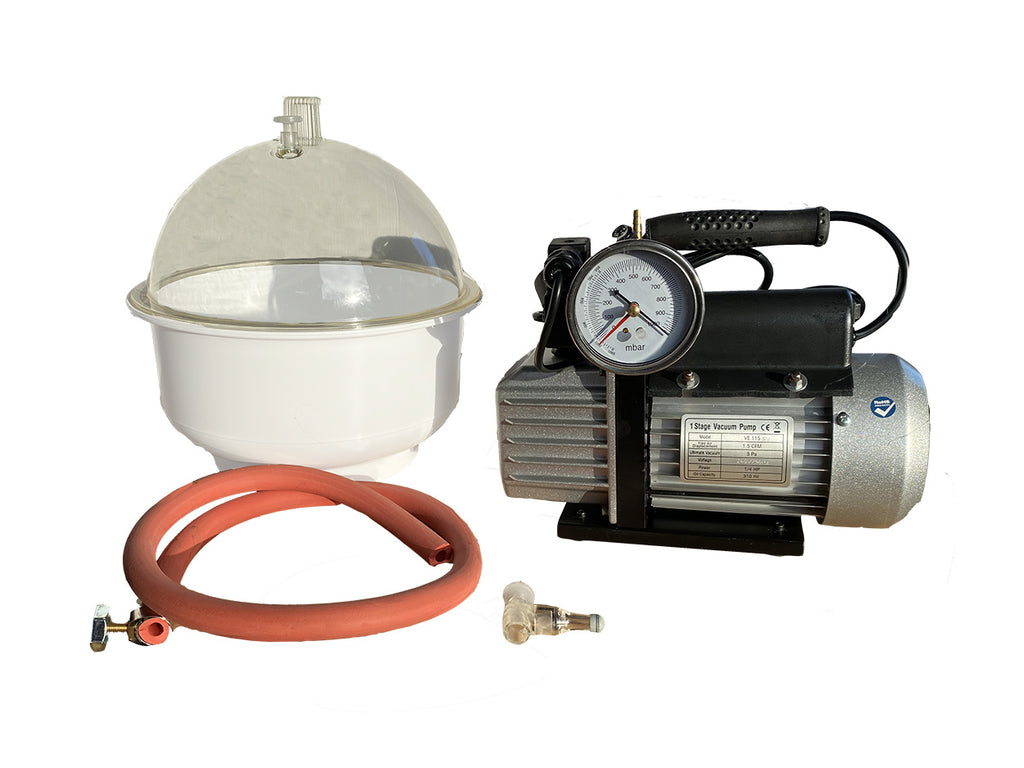

These degassing systems consists of: vacuumchamber, see-through lit, Vacuum pump, 1 mtr hose, vacuum manometer, blocking valve and venting valve.

The EVD-VE115SV is a professional pump for an economic price.

These Single & Double stage Oil lubricated Rotary Vane pumps reach a very good ultimate vacuum and are easy to work with. They are available in an SV-version that has a electric shut-off valve for the vacuum safety of the system. We can also supply these with a Gas ballast that allows these pumps to pump higher concentrations of condensable vapours. Due to their compact design and low weight they are used in applications like:

• Air conditioning industry
• Composites industries
• Small lifting equipment
• Hydraulic onsite repairs
• Vacuum furnace
• Many other applications

Including 9 liter vacuumchamber

Standard De-Gassing systems are used to pull the air from a high viscosity material before using. Particularly useful when casting clear materials. These easy to use vacuum degassing chambers are from steel with powder coating and have a see-through lit. Designed in mind for the versatile mold maker. These cambers are also used by model makers and hobbyists.

Technical data

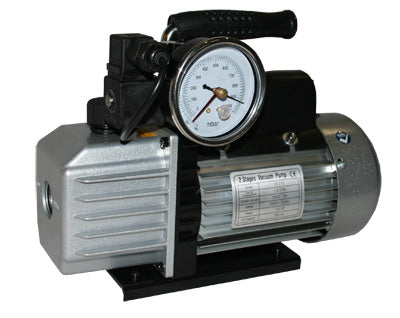

Vacuum pump EVD-VE115SV

• 2.5 m3/h
• 0.05 mbar
• 200 W.

Note: We strongly recommend buying an Exhaust Filter if you work in a room without proper ventilation!

TDS Technical data sheet EVD-VE115SV

De-Chassing Chamber 9 liter

• Material: plastic
• Dimensions inside: 24.5 x 25 cm. PLEASE NOTE, this is a spherical shape!
• End-pressure vacuum: 98%

Very suitable for our mixing cups up to 2 liters.
