These degassing systems consists of: vacuumchamber, see-through lit, Vacuum pump, 1 mtr hose, vacuum manometer, blocking valve and venting valve.

The EVD-VE 280 is a professional pump for an economic price.

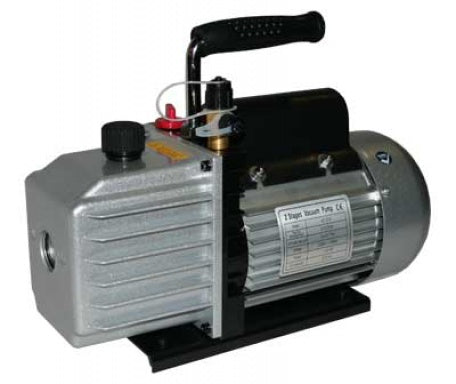

These Single & Double stage Oil lubricated Rotary Vane pumps reach a very good ultimate vacuum and are easy to work with. They are available in an SV-version that has a electric shut-off valve for the vacuum safety of the system. We can also supply these with a Gas ballast that allows these pumps to pump higher concentrations of condensable vapours. Due to their compact design and low weight they are used in applications like:

• Air conditioning industry
• Composites industries
• Small lifting equipment
• Hydraulic onsite repairs
• Vacuum furnace
• Many other applications

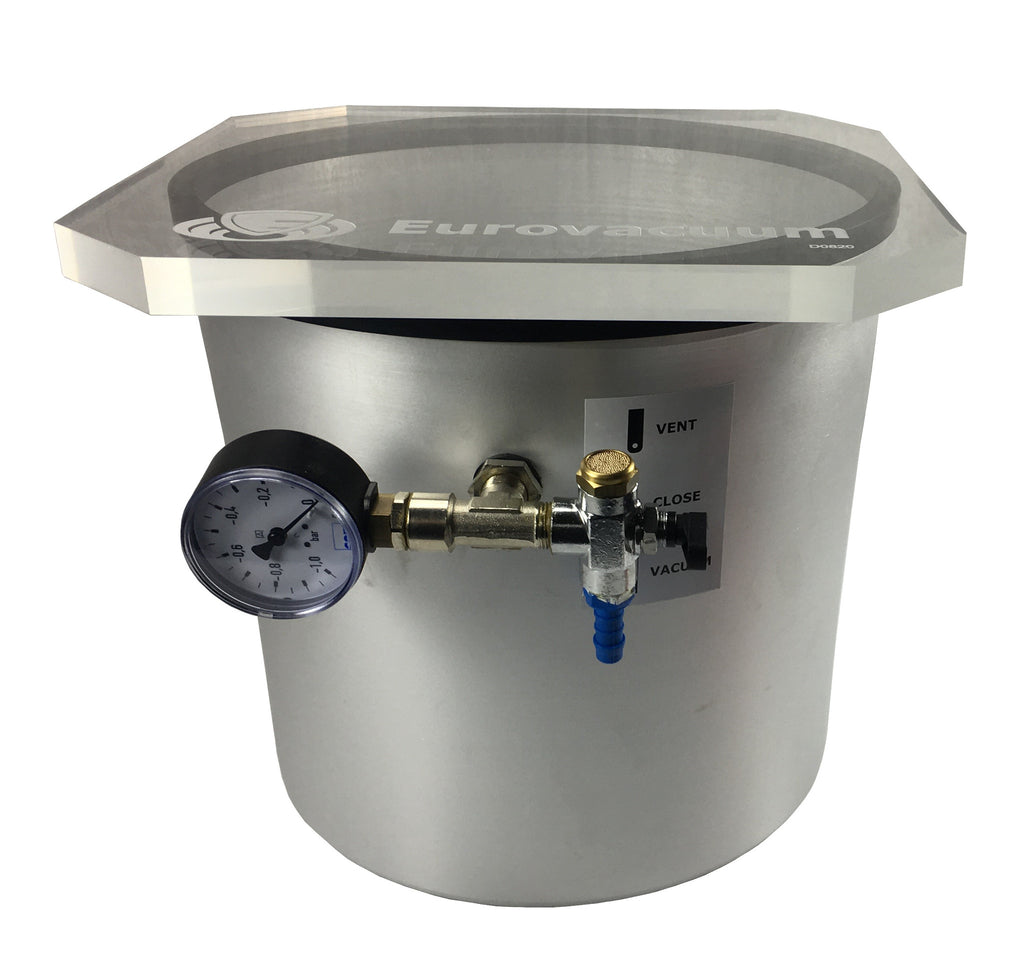

Including 70 liter vacuumchamber

Standard De-Gassing systems are used to pull the air from a high viscosity material before using. Particularly useful when casting clear materials. These easy to use vacuum degassing chambers are from steel with powder coating and have a see-through lit. Designed in mind for the versatile mold maker. These cambers are also used by model makers and hobbyists.

Technical data

Vacuum pump EVD-VE280

• 13.5 m3/h
• 3x10E-3 mbar
• 560 W.

Note: We strongly recommend buying an Exhaust Filter if you work in a room without proper ventilation!

TDS Technical data sheet EVD-VE280

De-Chassing Chamber 25 liter

• Material: powder coated steel
• Dimensions: 45 x 45 cm.
• End-pressure vacuum: 98%
