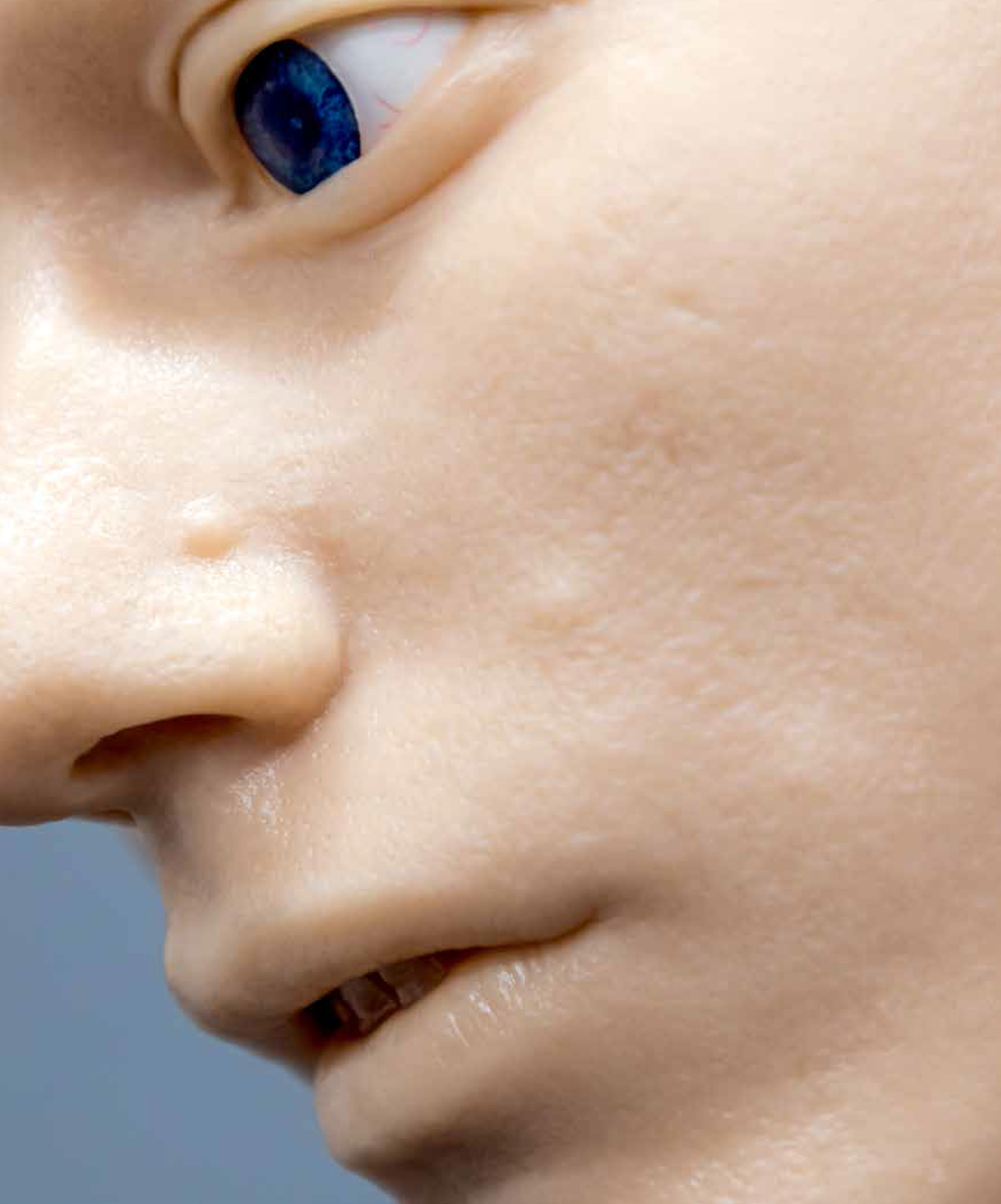

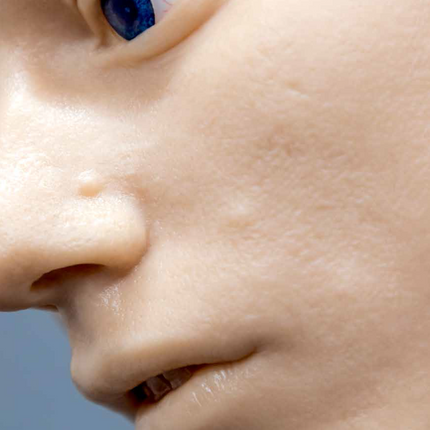

ELASTOSIL® FX platinum-cured silicone rubbers are used to create realistic skin effects for film, television, and theater, for example.

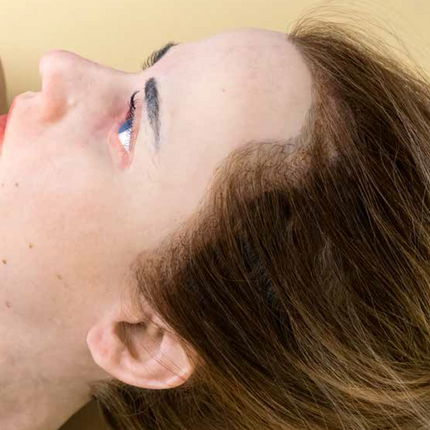

Use the range of base rubbers, gels, and additives to achieve stunning results for, for example: FX makeup / lifecasting, masks, body parts/prosthetic effects, wounds, and scars.
Advantages of Wacker Elastosil FX silicones:
• Safe for use on skin (no skin irritation)
• Very soft
• Elasticity allows for visible facial expressions and speech in masks/lifecasts
• Excellent reproduction of details
ELASTOSIL® FX 10, FX 20, FX 28, and FX 30 Gel can be used for:
• General prosthetic effects
• Lifecasts
• Body parts
• Wounds
• Masks and makeup
The material with a higher shore hardness, ELASTOSIL® FX 28, can mainly be used for:
• Body parts
• Decoration prototypes and
• Production molds
Available additives
The ELASTOSIL® FX rubbers can be combined with the following additives:
• FX Slow – extends working time
• FX Fast – shortens working time
• FX Thixo A (formerly FX Thixo) – makes the material thixotropic (non-sagging)
Technical specifications

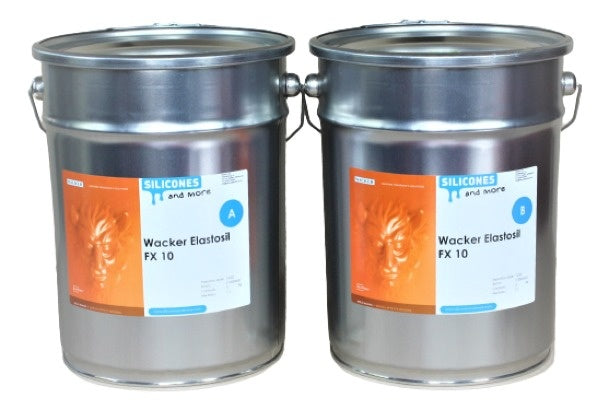

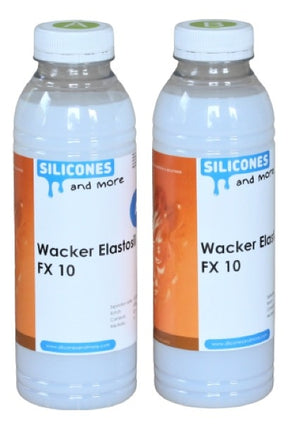

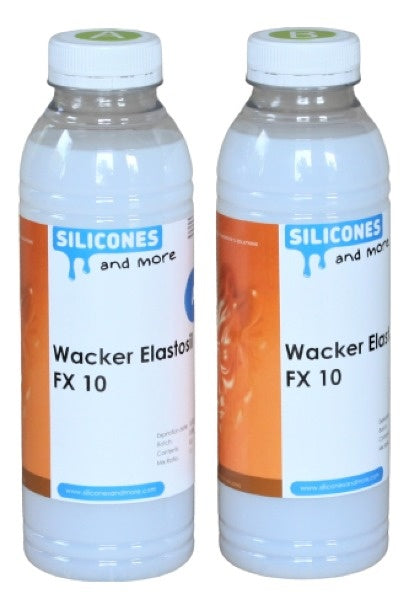

Mixing ratio by weight: A:B = 1:1
Hardness: Shore A 10 (soft)
Pot life (working time) at 23°C: 8-12 minutes
Curing time at 23°C: 45 minutes
Color: Translucent
Viscosity at 23°C: 5000 mPa⋅s
Tensile strength: > 4.5 N/mm²
Elongation at break: 950%
Shelf life
ELASTOSIL® FX 10 A/B is best stored between 5 °C and 30 °C in its tightly closed original packaging. The shelf life of each batch is stated on the product label. Storage beyond the date stated on the label does not necessarily mean that the product is no longer usable. In this case, however, the properties required for the intended use must be checked for quality assurance reasons.
Safety information
Components A and B of the addition-curing class ELASTOSIL® FX 10 A/B contain only ingredients that have been shown to be non-toxic or non-aggressive for many years. Special precautions for handling are therefore not required, i.e., only the general regulations for industrial hygiene apply. Detailed safety information is included in the safety data sheet, which can be found at the bottom of the page.
