Professional silicones for electronics and optical applications

This collection contains silicones for potting, encapsulating, coating and bonding electronic components and optical elements. Silicones provide electrical insulation, stay flexible over a wide temperature range and protect against moisture, vibration and thermal cycling.

Potting and encapsulation silicones (2-component)

  • Wacker Elastosil RT 601 – transparent, 45 Shore A, low viscosity; for potting and optical applications

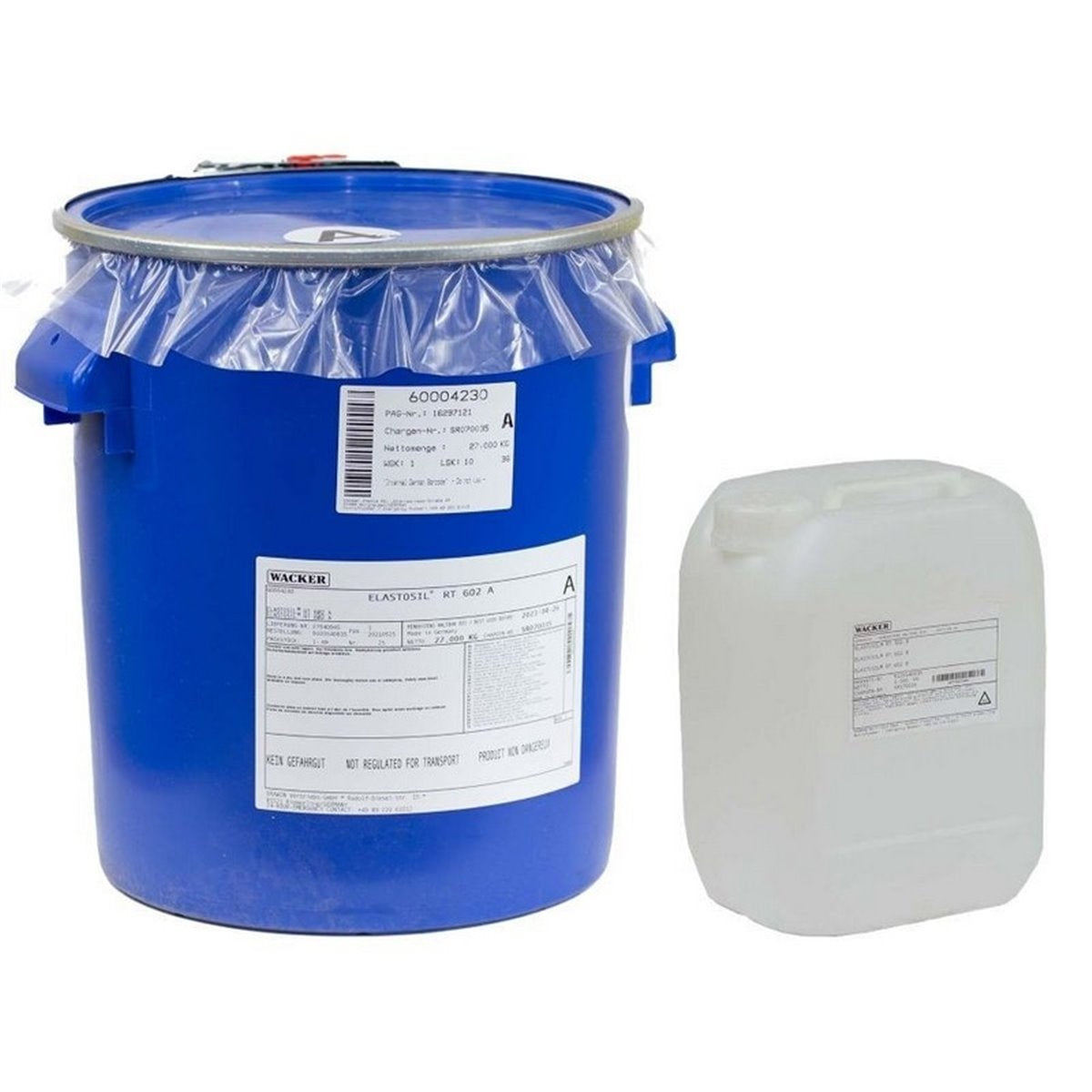

  • Wacker Elastosil RT 602 – light grey, for potting and encapsulating sensors
  • Wacker Elastosil RT 625 – pourable addition-cure silicone for encapsulation and moulds

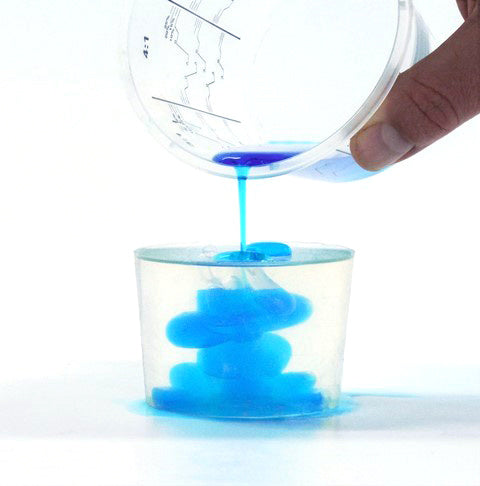

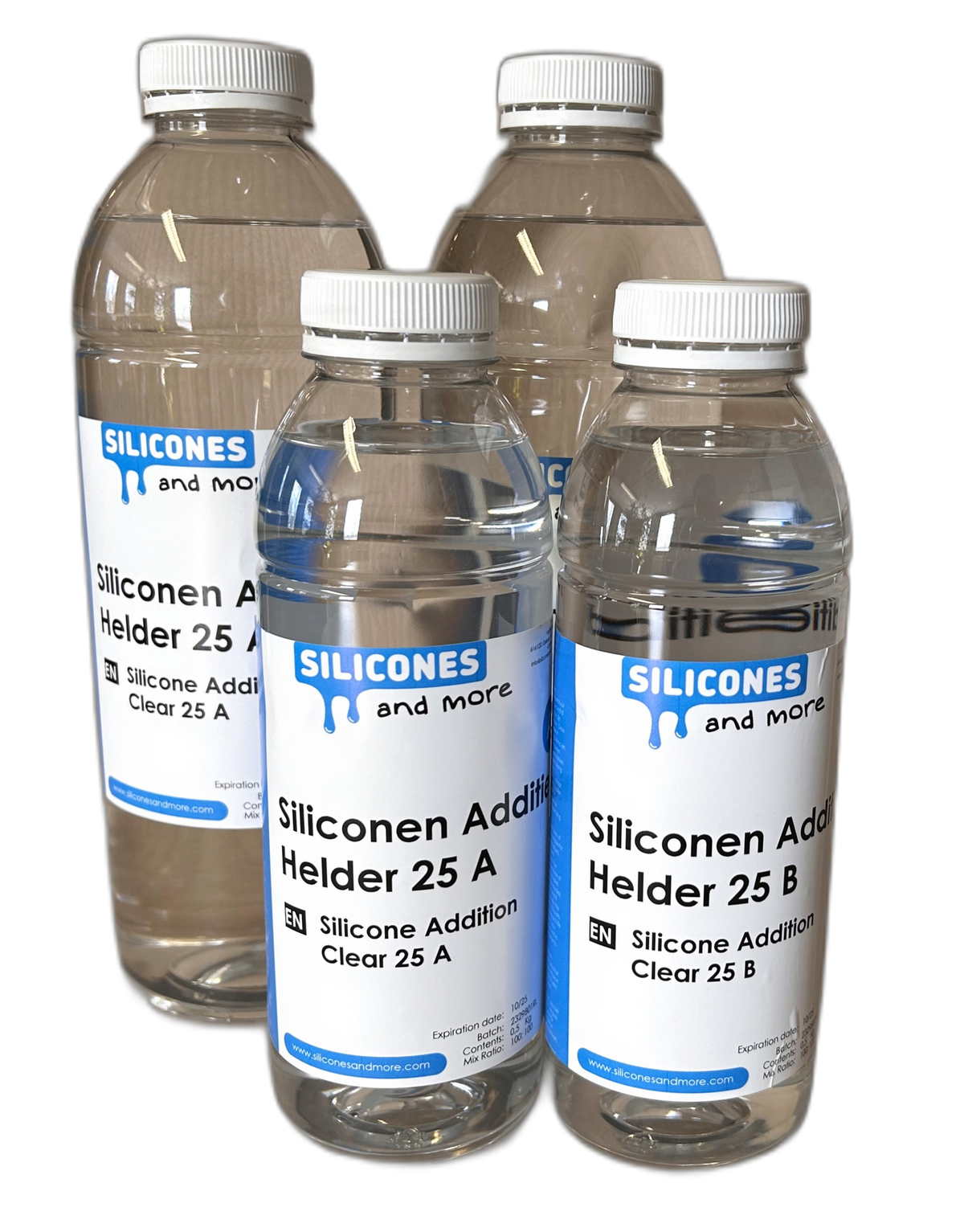

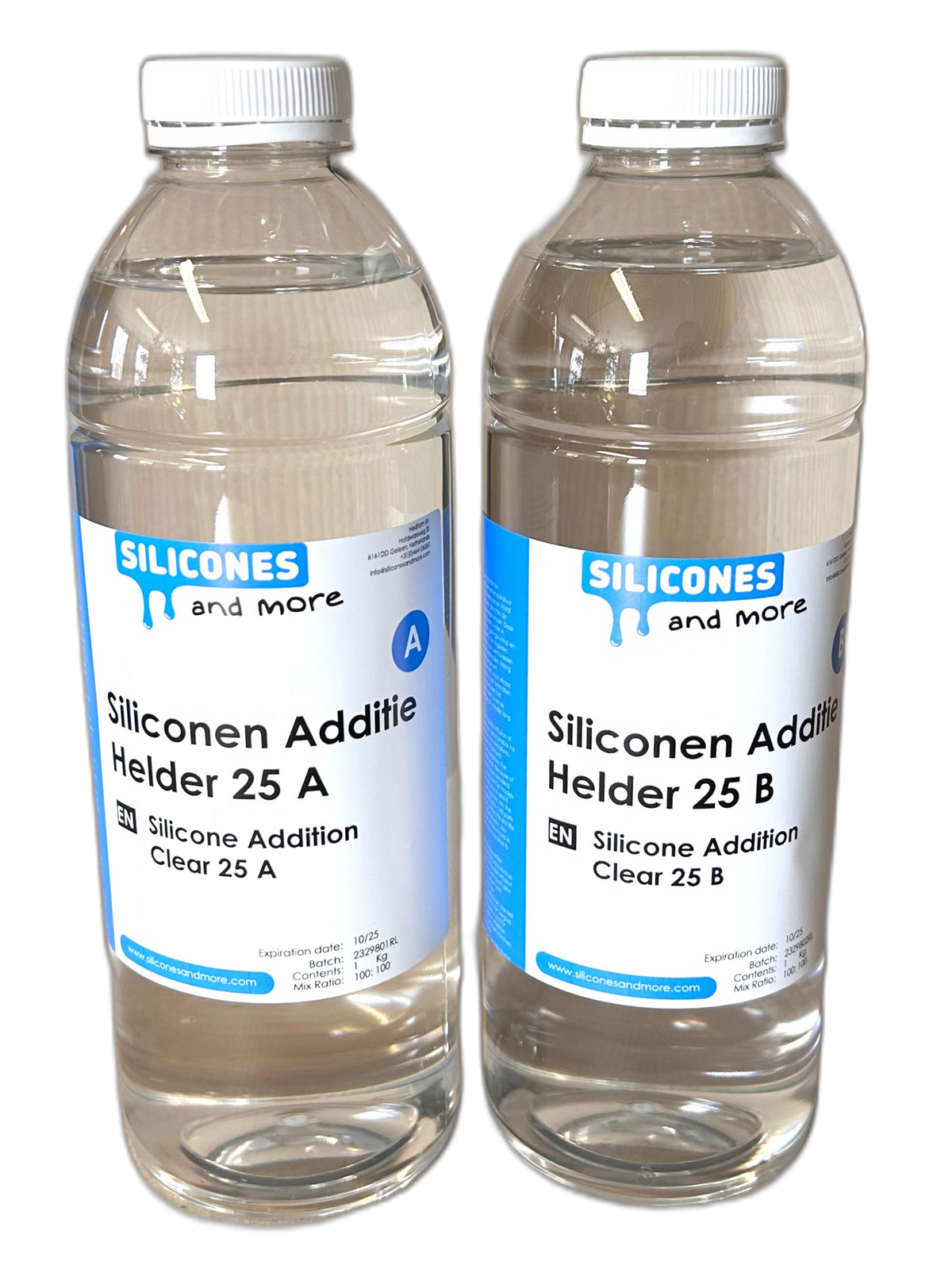

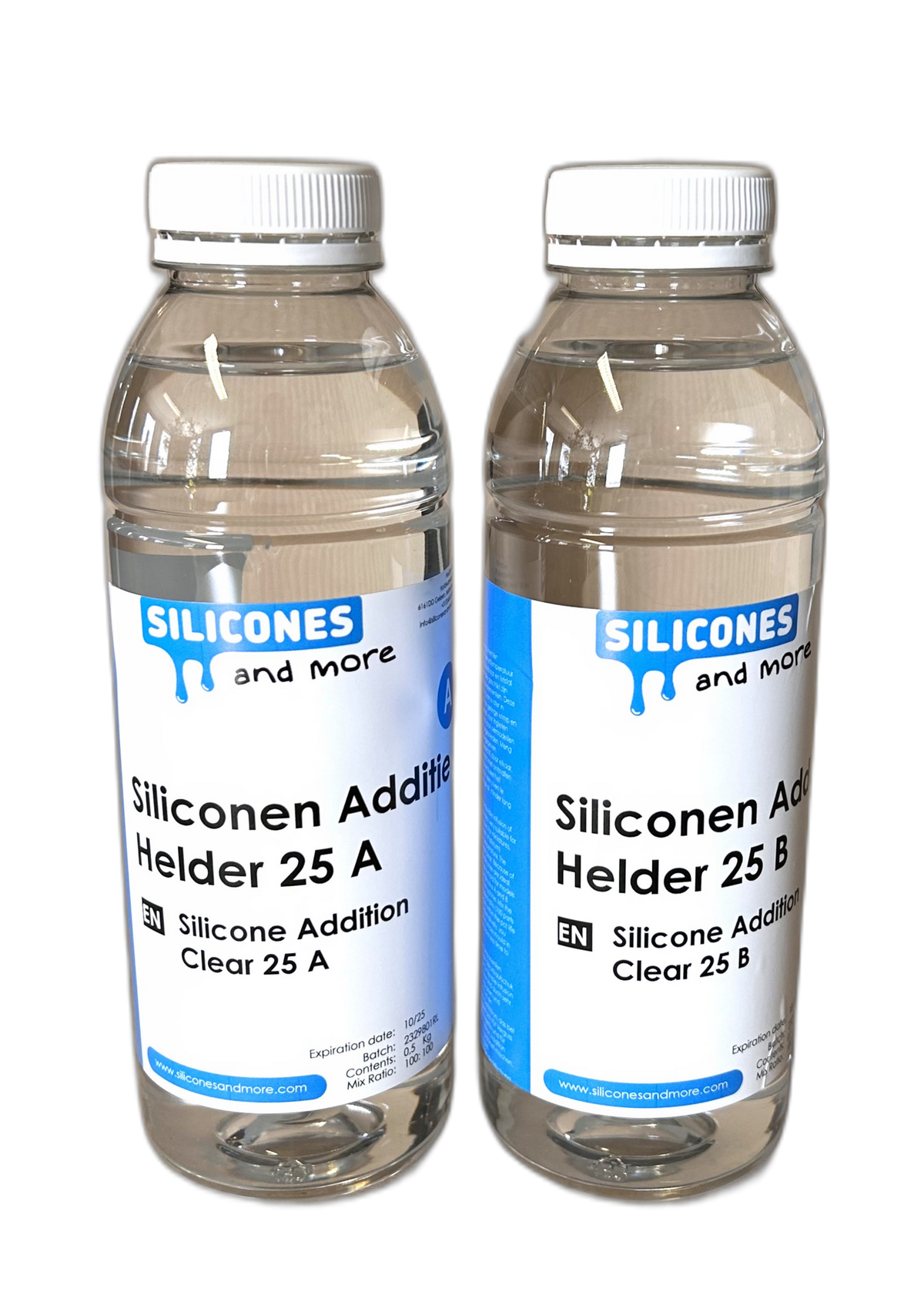

  • Addition Silicone Clear 5 and 25 – clear potting silicones in two hardnesses
  • Silpot 00-30 – very soft encapsulation silicone
  • Wacker Elastosil RT 675 (coming soon) – thermally conductive, reddish brown, 80 Shore A, mix ratio 1:1, up to 180 °C; for potting where heat must be dissipated

Silicone gels

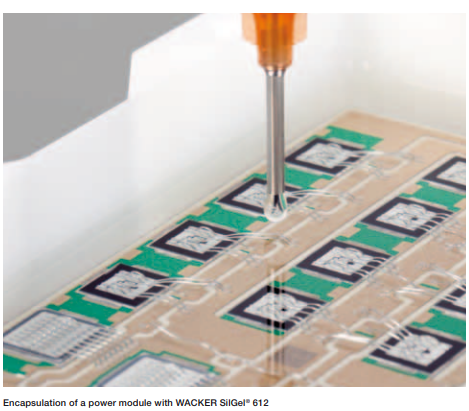

  • Wacker SilGel 612 – clear, very soft gel for sensitive electronics and power electronics
  • CHT ALPA-GEL 97166 – platinum-cure gel for electronics and battery modules

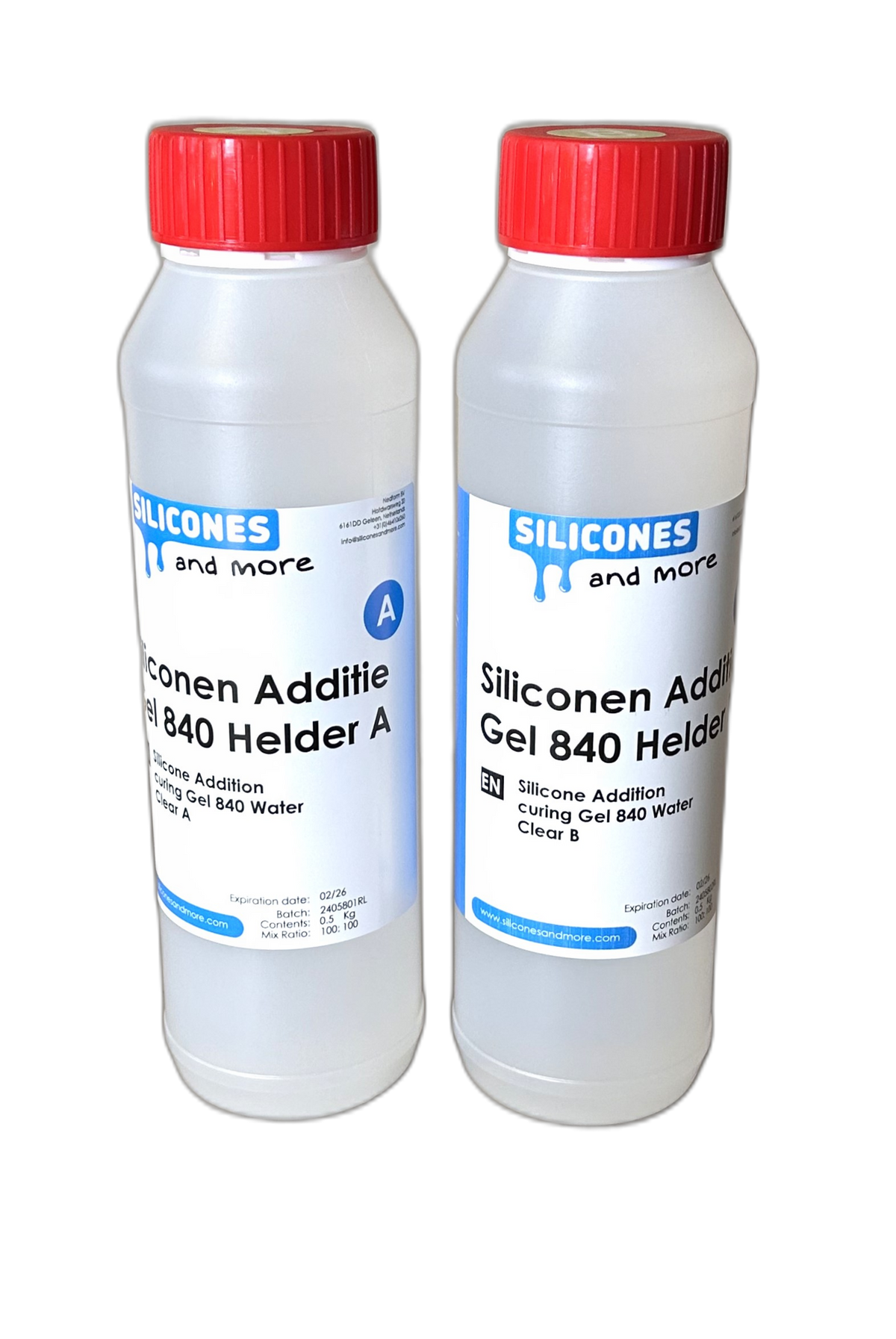

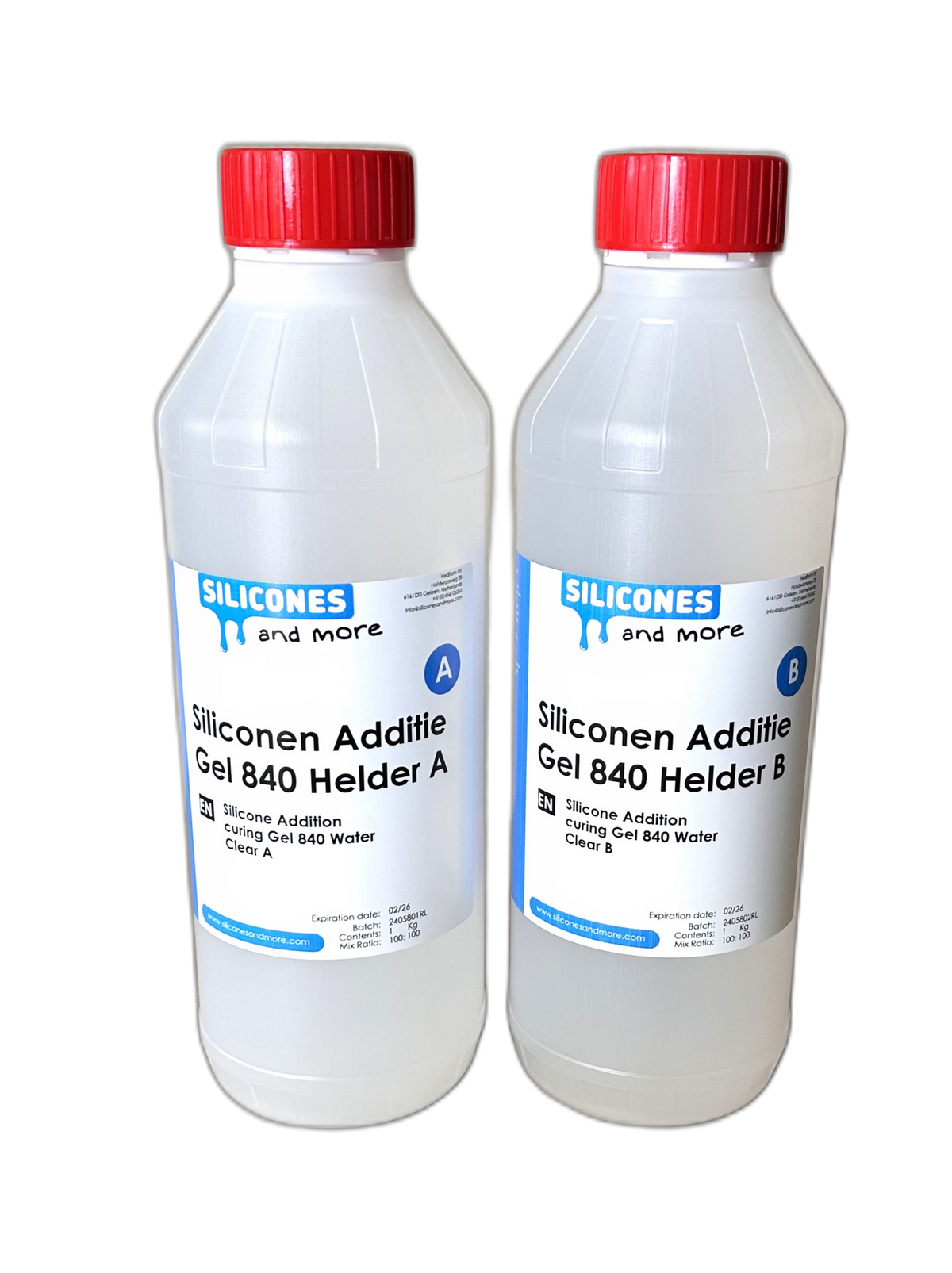

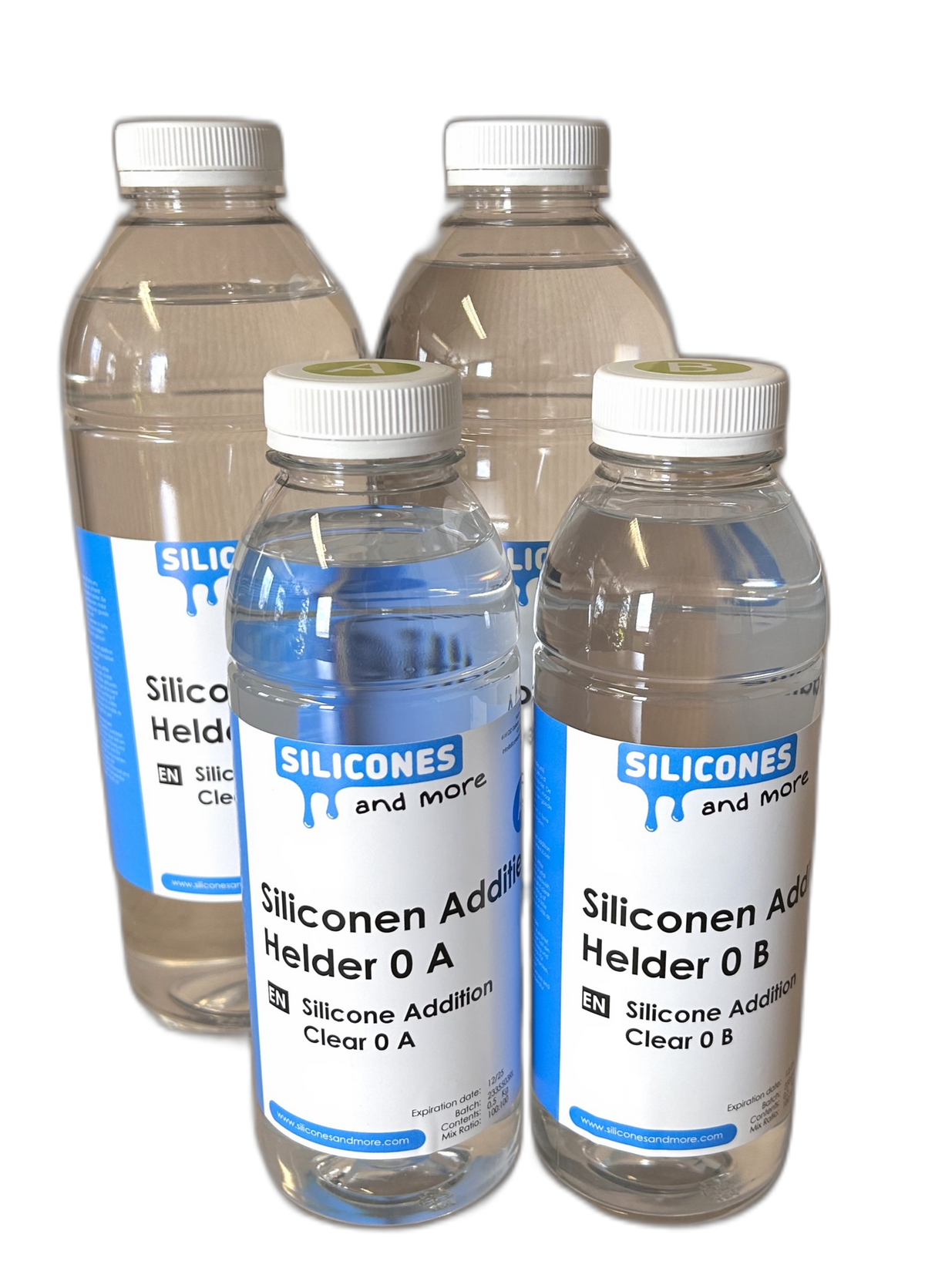

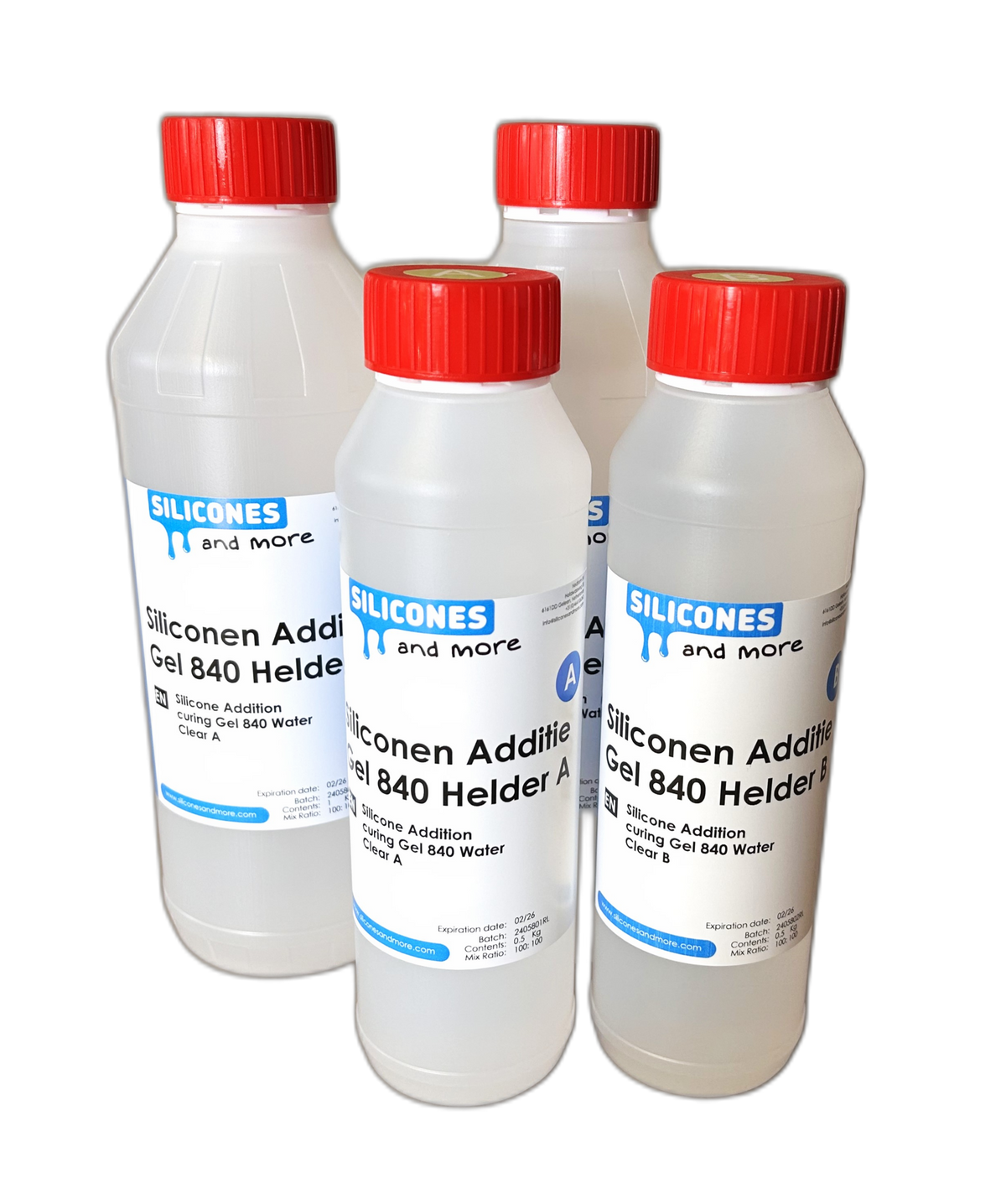

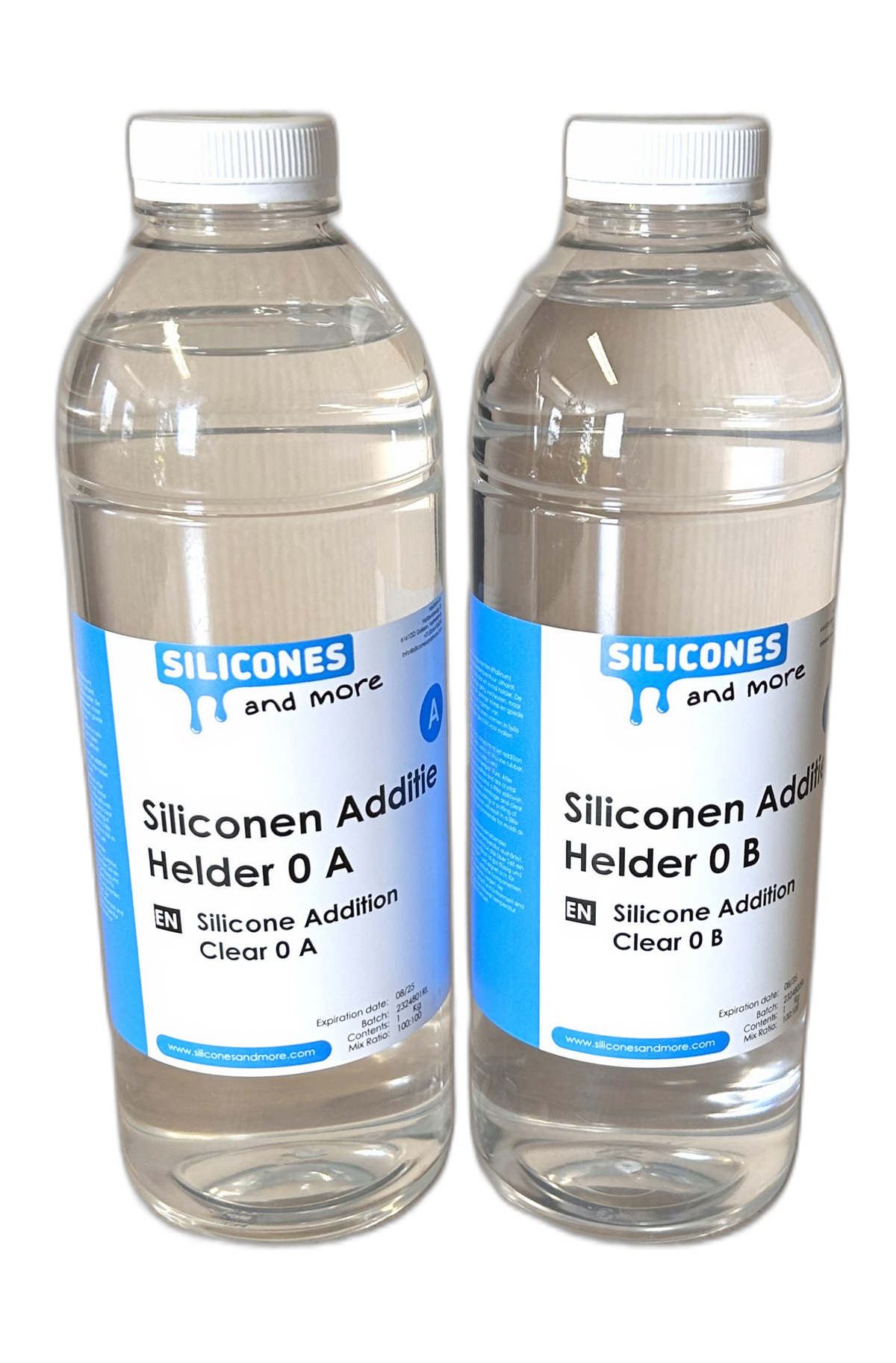

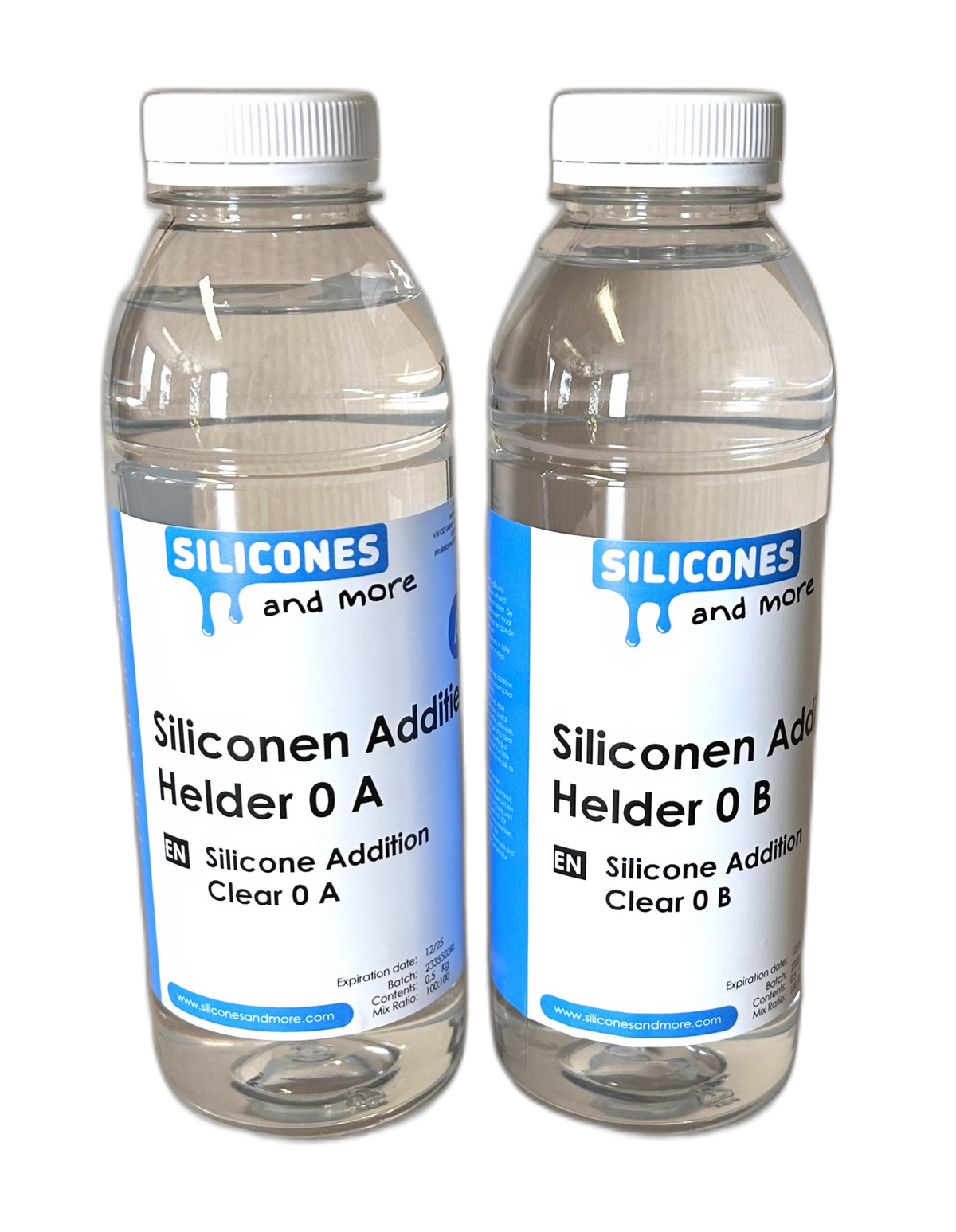

  • Addition Silicone Gel 840 Clear and Clear 0 Super Soft – soft, self-healing protection for delicate parts

Coating, sealing and bonding (1-component)

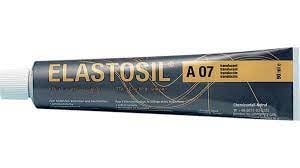

  • Wacker Elastosil A07 Translucent – flowable RTV-1, amine cure; for coating and bonding sensitive electronics

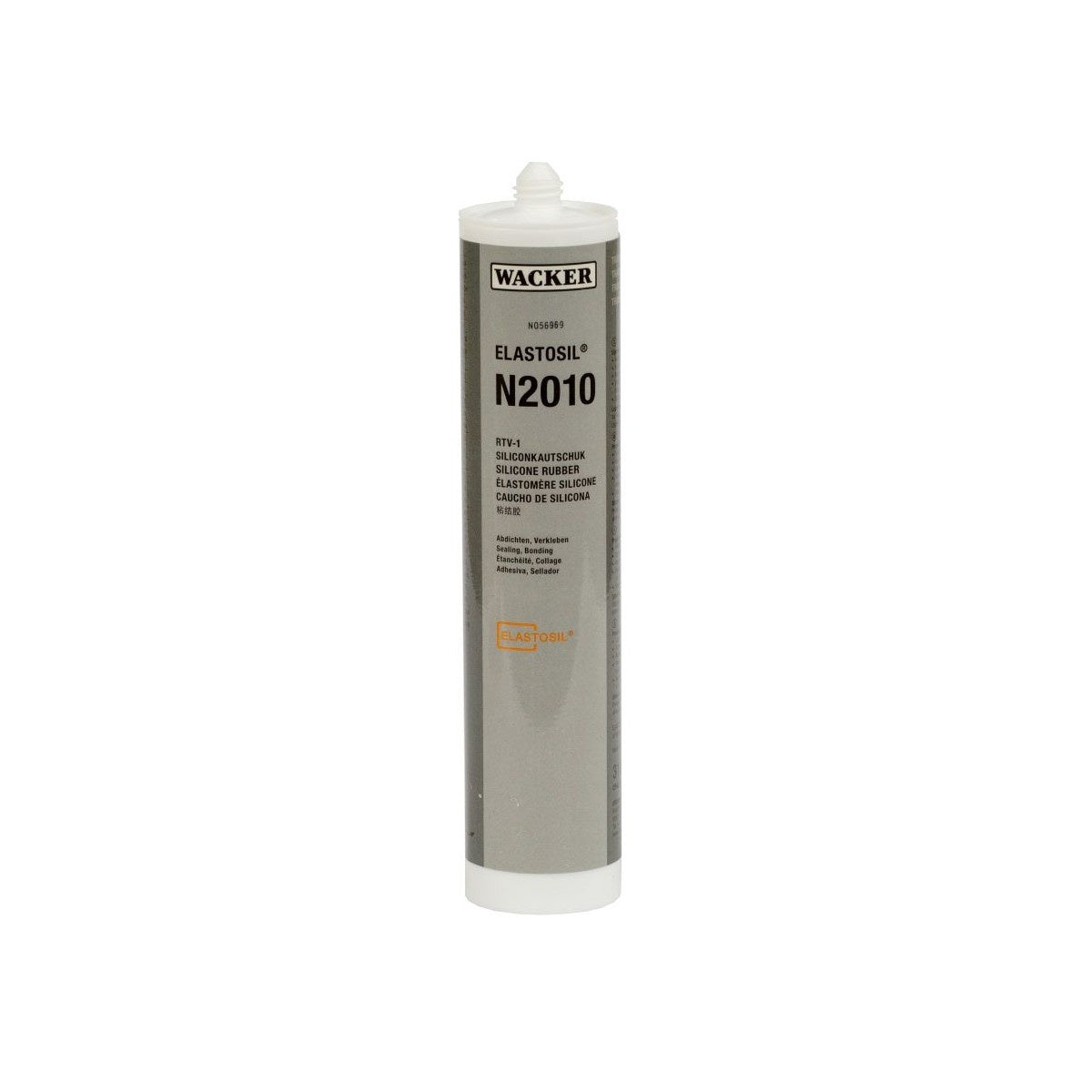

  • Wacker Elastosil N2010 – neutral-cure silicone adhesive for electronics and assembly

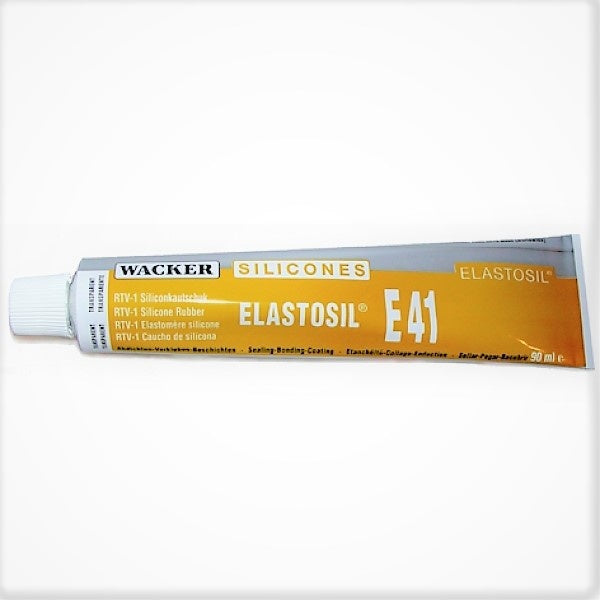

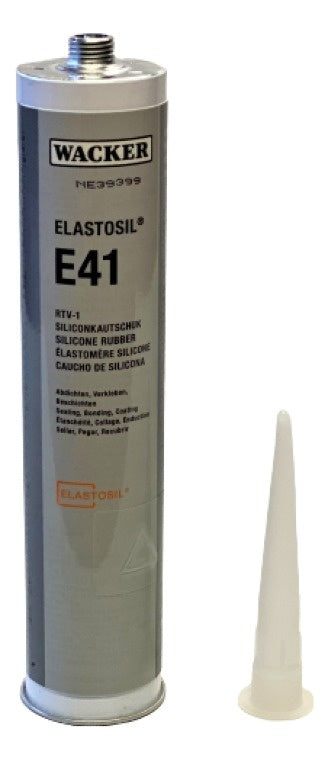

  • Wacker Elastosil E41 Transparent – self-levelling with strong adhesion. Note: acetoxy (acetic acid) cure, so do not apply directly to copper or other corrosion-sensitive metals

Silicone foam

  • CHT SilSo Lite 21030 – lightweight platinum silicone foam for potting battery modules (on request)

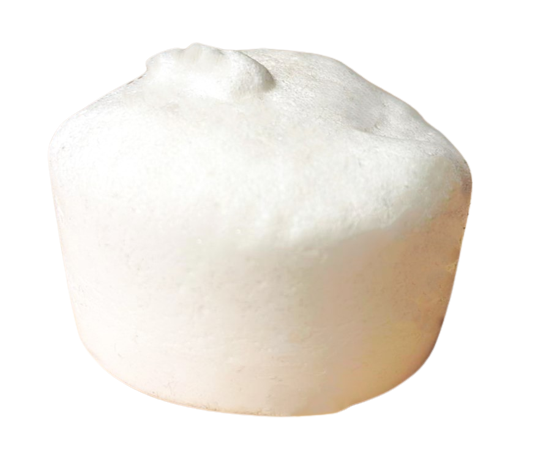

  • Silicone Foam Closed Cell and Open Cell – lightweight encapsulation, damping and thermal insulation

Primers for better adhesion

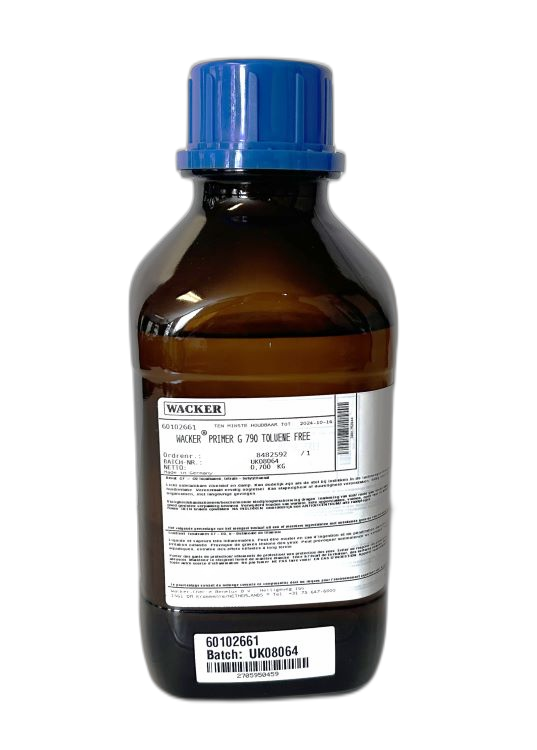

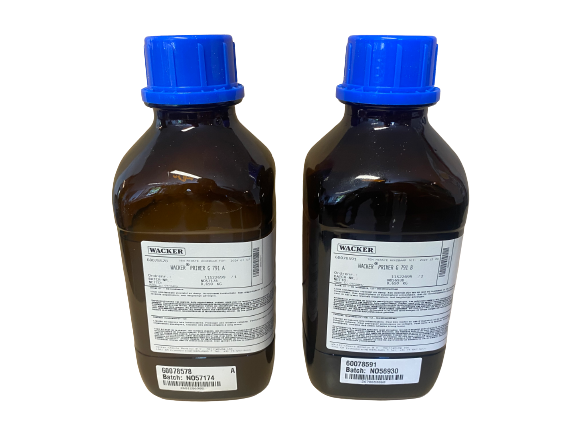

  • Wacker Primer G 790 and G 791 – for reliable adhesion of addition-cure silicones to metal, glass and plastic housings

Selection guide: which type suits your application?

TypeHardnessSuitable forProducts
Soft gelPenetration (very soft)Sensitive components, wire-bonded ICs, sensors. Self-healing and repairable: you can probe through it and the gel closes againSilGel 612, ALPA-GEL 97166, Gel 840 Clear, Clear 0
Soft elastomerShore 00 to approx. 10 Shore AVibration damping, PCBs with heavy components, connectorsSilpot 00-30, Clear 5
Elastomer20–45 Shore AMechanical protection, transformers, coils, optical encapsulationRT 601, RT 602, RT 625, Clear 25
1-component (RTV-1)25–40 Shore AThin layers, coating, sealing and bonding without mixingA07, N2010, E41
Silicone foamSoft, low densityWeight saving, battery modules, damping and insulationSilSo Lite 21030, Foam Closed/Open Cell
Thermally conductive elastomerapprox. 80 Shore APower supplies, power electronics and components that need to dissipate heatRT 675 (coming soon)

Cure systems compared

SystemBy-productCorrosive?Note
Addition (platinum), 2KNoneNoUniform cure even in thick sections, faster with heat. Sensitive to inhibition
Condensation (tin), 2KAlcoholNoLess sensitive to inhibition. Do not heat above 90 °C during cure
1K acetoxyAcetic acidYes, on copper and metalsFast with strong adhesion, not directly on electronics (E41)
1K amineAmineLimitedSuitable for sensitive electronics (A07). Inhibits platinum silicones: do not combine with addition systems
1K neutral (alkoxy)AlcoholNoSafest choice for electronics (N2010)

🌡️ Typical properties

  • Temperature range: flexible from approx. -50 °C up to +180 °C continuous; special grades up to +250 °C
  • Thermal conductivity: standard 0.2–0.4 W/m·K; for heat dissipation Elastosil RT 675 will be available soon, other thermally conductive grades on request
  • Dielectric strength: typically 21–23 kV/mm
  • Volume resistivity: 10¹³–10¹⁶ Ω·cm, depending on grade
  • Transparent grades: refractive index approx. 1.40–1.41, UV-resistant and non-yellowing

Exact values differ per product. Always check the technical data sheet (TDS) of the selected product.

Processing tips

  • Weigh and mix accurately: keep to the exact mix ratio and scrape the sides and bottom.
  • Vacuum degassing: for bubble-free potting and optical clarity.
  • Accelerating cure: addition-cure silicones cure faster with heat (Wacker cites e.g. approx. 30 minutes at 140 °C). Consider the temperature resistance of your components.
  • 1K silicones cure with atmospheric moisture, approx. 1–2 mm per day. Use them for thin layers, not for deep potting.
  • Avoiding inhibition: addition-cure (platinum) silicones will not cure in contact with sulphur, tin, amines and some solder residues or coatings. Always test on a small area first.
  • Adhesion: silicones naturally adhere poorly. Clean the surface and use a primer when the silicone must bond to the housing.

Applications

  • Electronics: PCBs, sensors, connectors, power supplies
  • LED lighting: encapsulating LED strips and modules
  • Batteries and e-mobility: encapsulating and damping modules
  • Automotive and industry: control units, sensors, cable glands
  • Optics: clear encapsulation of optical elements

Brochures and selection guides

Need more background? See the manufacturers' brochures and product overviews.

Not sure which product suits your application, or looking for a thermally conductive or flame-retardant grade? Contact us for technical advice.
